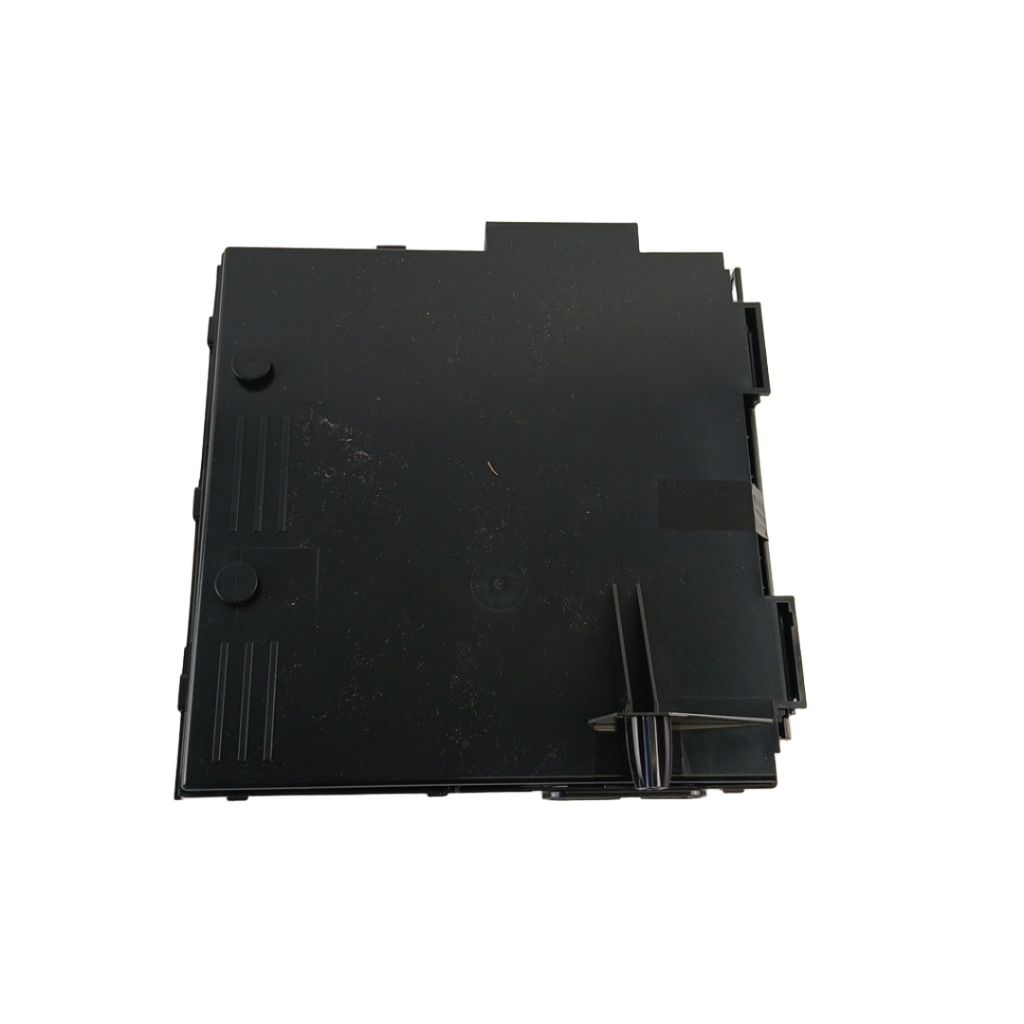

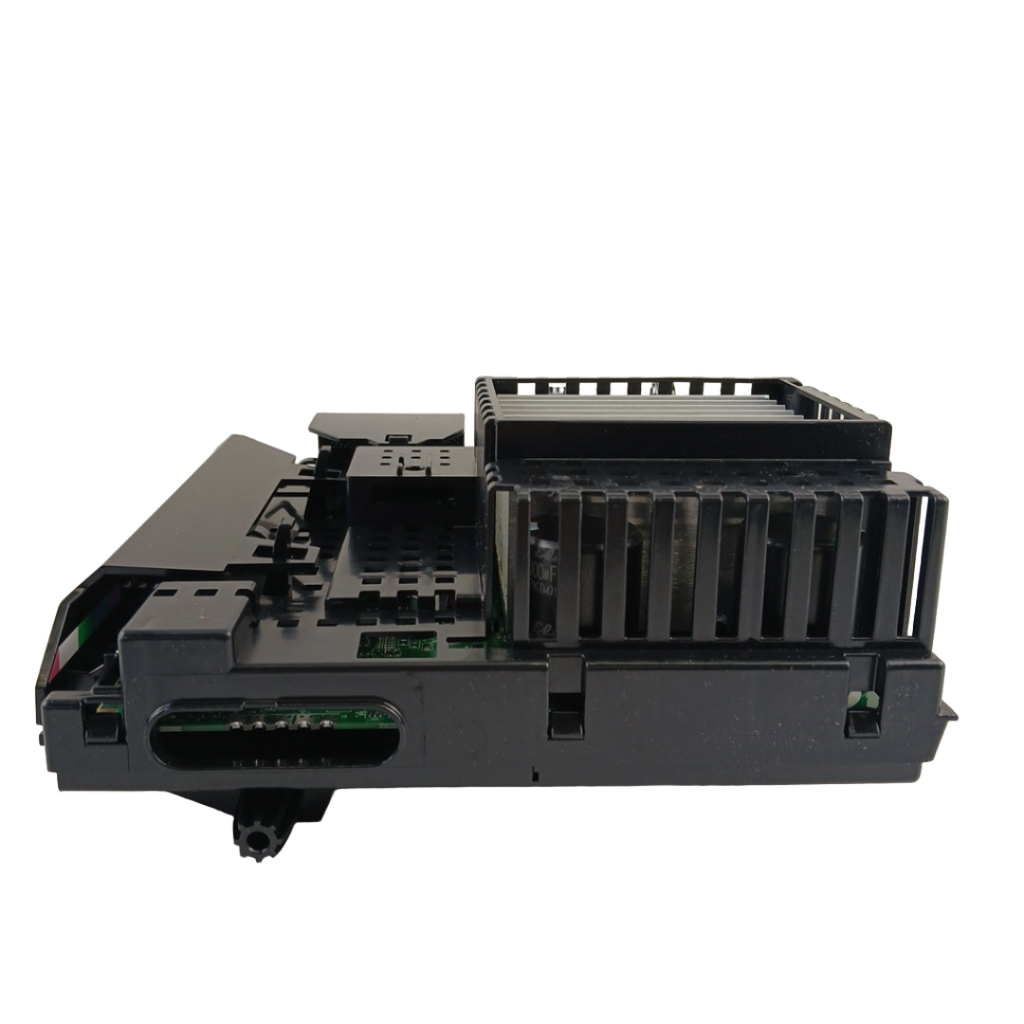

W11549931 Washer Electronic Control Board (Main Control Board, Machine Control, Control Board Assembly)

Sale price
$289.99
Regular price
$465.69
You save
$175.70 (38%)

XPart Number: 9772902351137   |   GTIN: 100094975481

Buying Options: OEM
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together

Guaranteed to fit your model: Need help? Call 833-899-7278

Shipper / Seller: XPart Supply Ltd.

Professional Repair Time: 30–60 minutes
DIY Repair Time: 60–120 minutes
Difficulty Rating: Medium (3/5)

  • Washer completely dead / no power / no response
  • Intermittent power resets or random beeping
  • Won’t fill, won’t drain, won’t spin, or won’t agitate (with good components)
  • Cycle stuck or won’t advance
  • Repeated error codes related to control/actuation (model dependent)
  • Loads not being energized (pump/valves) due to failed relays/triacs

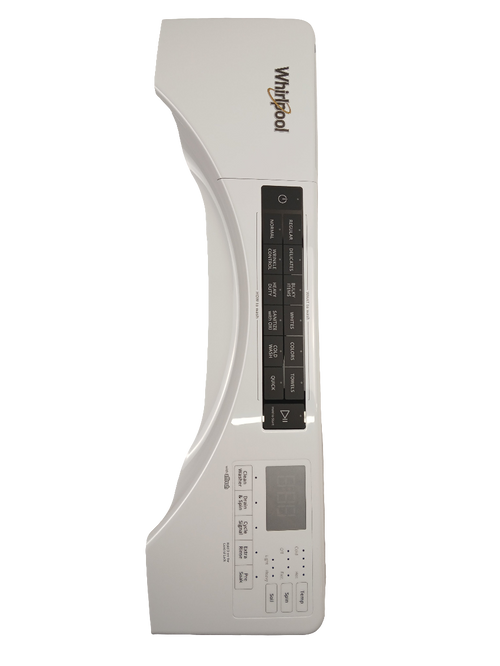

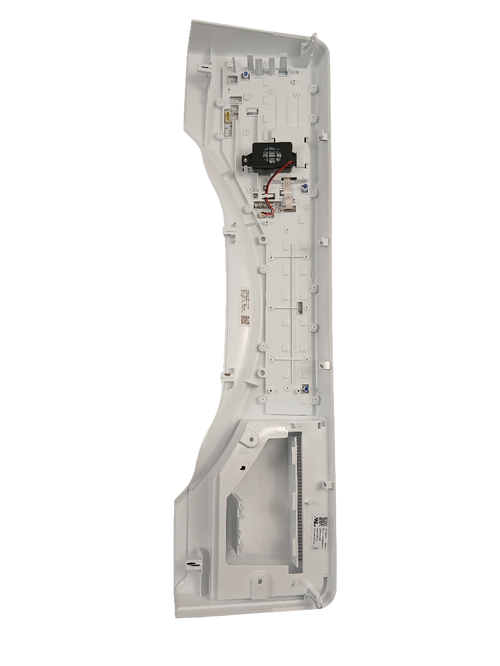

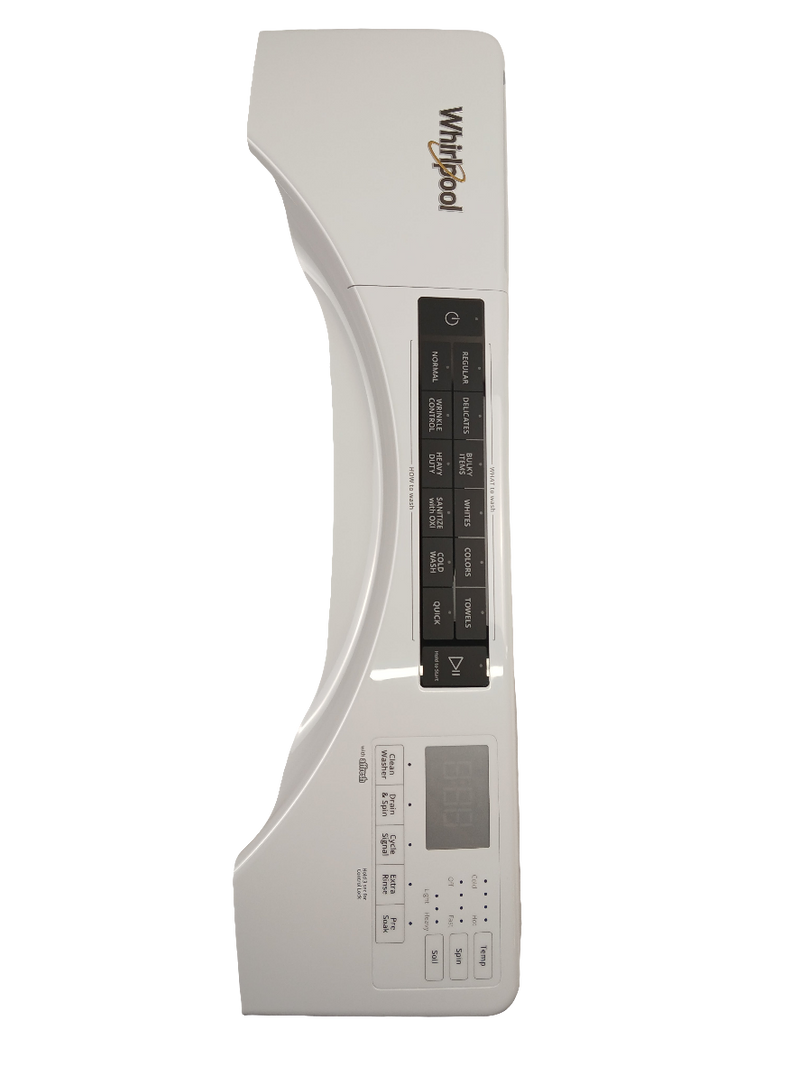

W11325580 Washer Control Panel Assembly (replaces W11294805) Whirlpool Washer Door Lock Assembly W11316250 (Replaces W10804741)

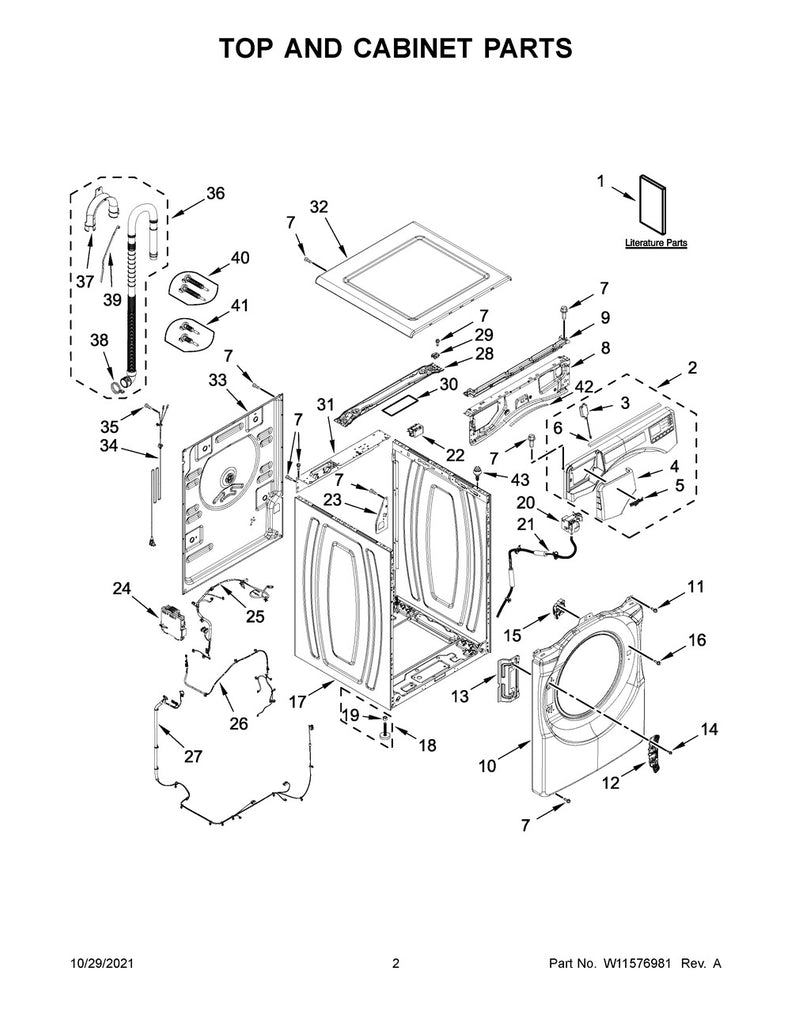

Item #24 in diagram

Whirlpool, Maytag, Amana, Kenmore (verify by model)

Fits Models: (Ctrl+F and Enter Your Model Number)


WFW560CHW3, WFW560CHW4

CRITICAL SAFETY WARNING: Unplug washer. Use ESD precautions.

  1. Unplug washer from power.
  2. Turn off water supply (recommended) and pull unit forward for access.
  3. Remove the control console screws (rear or end-cap screws, model dependent).
  4. Tilt/flip the console open to access the control board housing.
  5. Photograph all connectors and wire routing before removal.
  6. Release locking tabs and disconnect harness connectors from the old board (do not pull on wires).
  7. Remove the board from its mounting clips/housing.
  8. Install the new W11549931 board into the housing/clips fully seated.
  9. Reconnect all harness connectors (verify each latch clicks/locks).
  10. Reassemble console.
  11. Restore power and run diagnostics/calibration (platform dependent) to confirm proper operation.
  1. Before replacing, verify incoming power and check for a blown line filter/fuse if the platform uses one.
  2. Inspect connectors for heat discoloration—repair harness side or the new board can fail early.
  3. If “won’t drain,” ohm-test the pump and check for blockages first; boards are often blamed incorrectly.
  4. If “won’t spin,” confirm lid lock/door lock feedback—control won’t command spin without it.
  5. Check the pressure hose for pinholes/soap gunk—bad level sensing mimics board failure.
  6. After replacement, run the manufacturer calibration/auto-test if available (VMW platforms often require it).
  7. If the old board shows burn marks, check the driven load (pump/valve) for shorts before powering up.
  8. Use ESD handling—static damage can create “new board intermittent” headaches.


Whirlpool refrigerator replacement parts, Frigidaire refrigerator replacement parts, GE refrigerator replacement parts, Kenmore refrigerator replacement parts, KitchenAid refrigerator replacement parts, LG refrigerator replacement parts, Maytag refrigerator replacement parts, Whirlpool refrigerator drawers and glides replacement, Whirlpool dishwasher replacement parts, GE dishwasher replacement parts, KitchenAid dishwasher replacement parts, Maytag dishwasher replacement parts, Frigidaire dishwasher replacement parts, Kenmore dishwasher replacement parts, Whirlpool washer replacement parts, GE washer replacement parts, Maytag washer replacement parts, Kenmore washer replacement parts, LG washer replacement parts, Whirlpool dryer replacement parts, GE dryer replacement parts, Maytag dryer replacement parts, Kenmore dryer replacement parts, LG dryer replacement parts, Whirlpool range replacement parts, GE range replacement parts, Whirlpool stove replacement parts, GE stove replacement parts, GE oven replacement parts, GE microwave replacement parts, buy Whirlpool refrigerator parts online, buy GE dishwasher parts online, replacement Kenmore washer parts for sale, buy Maytag dryer parts, LG washer replacement parts online, KitchenAid refrigerator parts for sale, Whirlpool stove and range replacement parts

W11549931 Washer Electronic Control Board

The W11549931 is a genuine OEM Whirlpool-family main electronic control board that manages the washer’s core functions: water valve actuation, motor control commands, drain pump operation, lid/door lock logic, cycle timing, and sensor inputs (water level/pressure, temperature where applicable, speed feedback, etc.). When the board fails, symptoms can range from “dead washer” to intermittent resets, no fill/no drain/no spin, stuck cycles, random beeping, or error codes tied to communication/actuation faults. Common failure modes include relay/triac failure (won’t power a load like pump/valve), power supply issues (no display/dead), corrosion from moisture, overheated solder joints, or damage from surges. IMPORTANT: Many “board” complaints are actually harness/connector, lid lock, drain pump, or pressure hose issues—confirm inputs/outputs before replacement. CRITICAL: Unplug washer before servicing; discharge static and avoid touching board traces.
