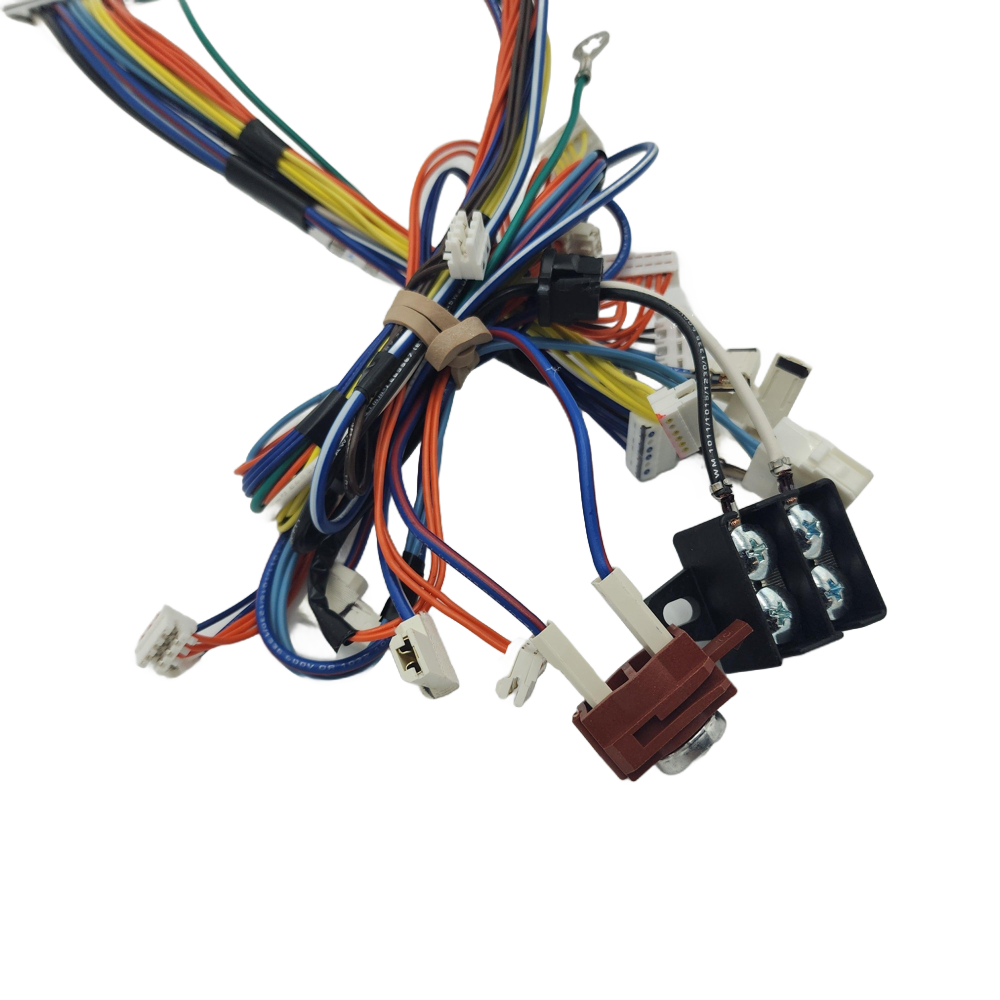

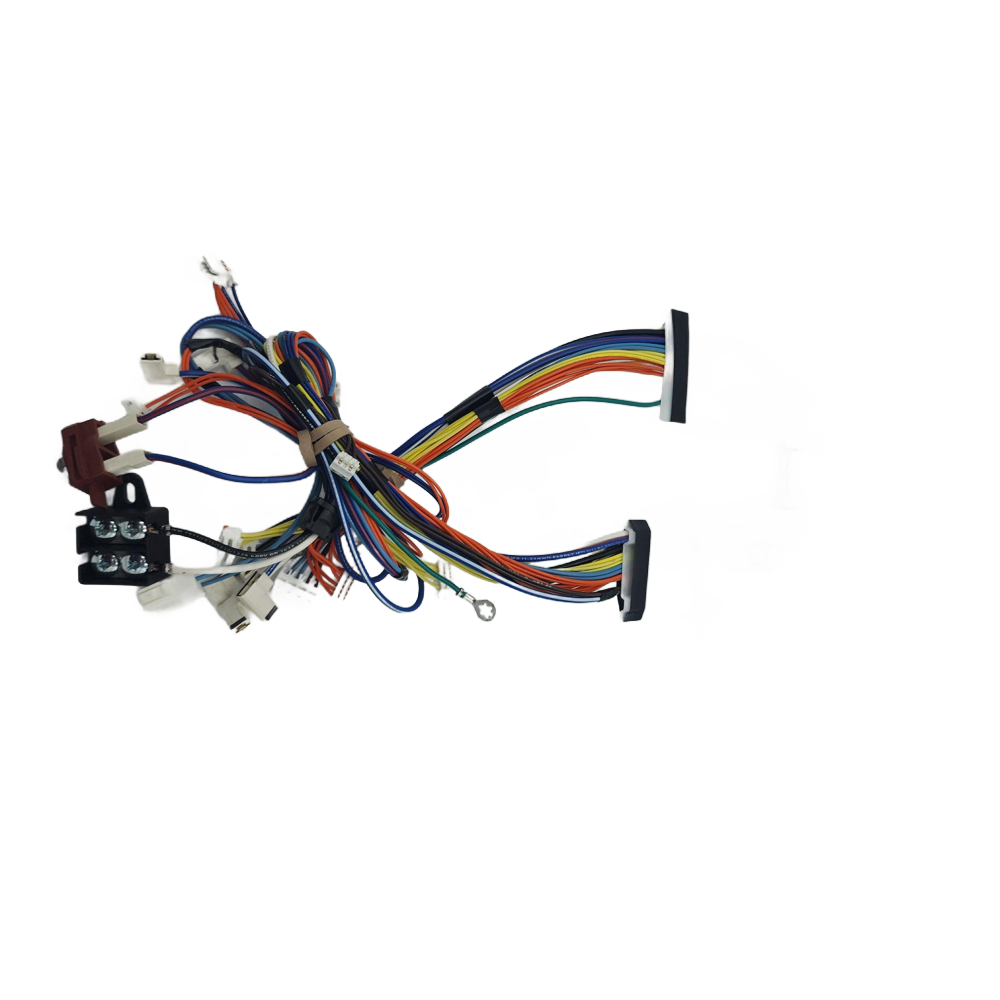

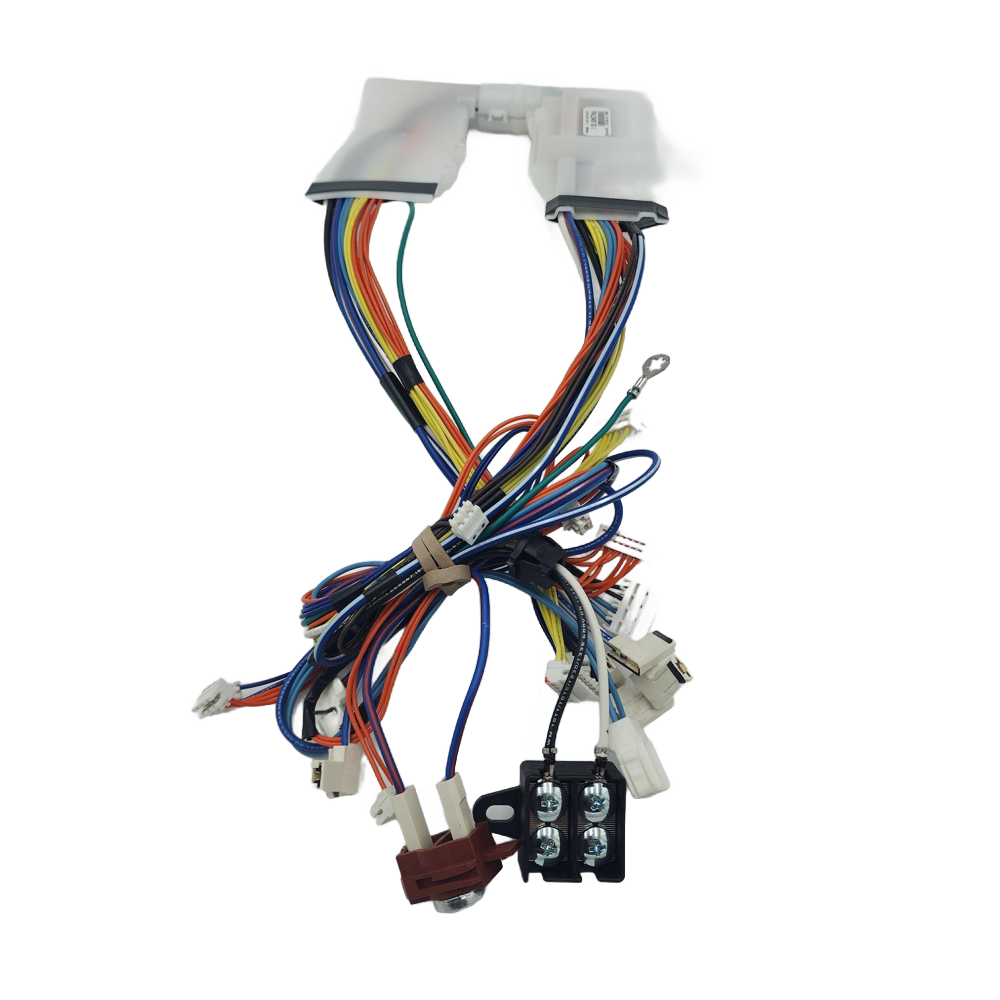

Whirlpool Dishwasher Wiring Harness, Main (includes Thermostat & Fuse) W11662347, Replaces W11344507

Sale price
$95.84
Regular price
$98.13
You save
$2.29 (2%)

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
DISHWASHER WILL NOT START

Whirlpool Dishwasher Wiring Harness, Main (includes Thermostat & Fuse) W11662347, Replaces W11344507, Fixes Dishwasher will not start

Genuine Whirlpool main dishwasher wiring-harness assembly that includes a thermostat and fuse.

Part W11662347Replaces W11344507Whirlpool

Genuine Whirlpool main dishwasher wiring-harness assembly that includes a thermostat and fuse.

Is This the Right Part?

Part NumberW11662347
ReplacesW11344507
ManufacturerWhirlpool
Appliance TypeDishwasher
Part TypeWiring Harness, Main (includes Thermostat & Fuse)

✅ Cross Reference Information

Current Part NumberW11662347
ReplacesW11344507

Common Symptoms

  • Dishwasher will not start.

Check Before Replacing

  • Disconnect electrical power, then inspect the harness for visibly frayed or broken wires before concluding that it requires replacement.

Pro Tip

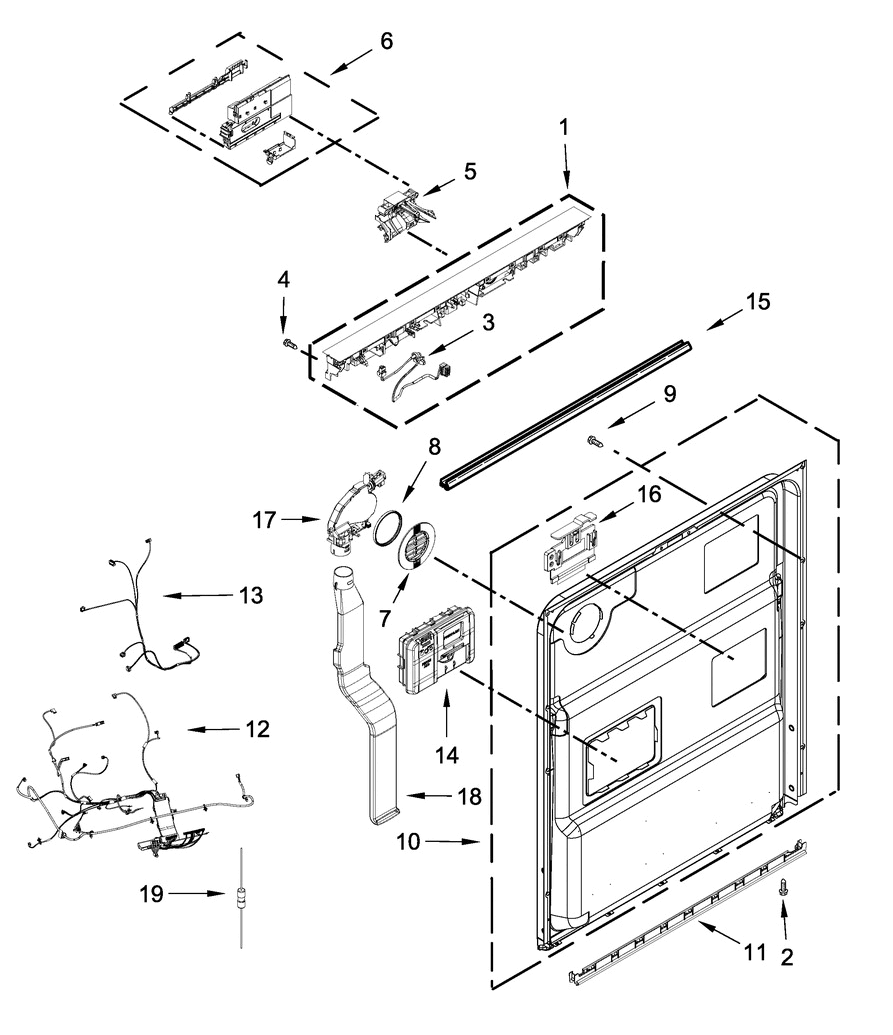

Confirm the complete model number against a parts diagram or fitment database before ordering; this is a model-specific main harness.

Part Details

Part NumberW11662347
Part TypeWiring Harness, Main (includes Thermostat & Fuse)
ManufacturerWhirlpool
Appliance TypeDishwasher
Primary FunctionProvides the dishwasher's main wiring-harness assembly, including the thermostat and fuse.
Cross ReferencesW11344507

Key Features

  • Main wiring-harness assembly.
  • Includes a thermostat and fuse.
  • Whirlpool OEM part number W11662347.

Installation Notes

  • Disconnect electrical power before inspecting or replacing this electrical harness.

Verified Compatible Models

KDPM604KBS0, KDPM604KBS1, KDPM604KBS2, KDPM604KPS0, KDPM604KPS1, KDPM604KPS2, KDTM604KBS0, KDTM604KBS1, KDTM604KBS2, KDTM604KPS0, KDTM604KPS1, KDTM604KPS2, MDB9959SKZ0, MDB9959SKZ1, MDB9959SKZ2, MDB9979SKZ1, MDB9979SKZ2, MDPS6124RZ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.

✅Compatibility & Cross Reference

W11344507

KDPM604KBS0, KDPM604KBS1, KDPM604KBS2, KDPM604KPS0, KDPM604KPS1, KDPM604KPS2, KDTM604KBS0, KDTM604KBS1, KDTM604KBS2, KDTM604KPS0, KDTM604KPS1, KDTM604KPS2, MDB9959SKZ0, MDB9959SKZ1, MDB9959SKZ2, MDB9979SKZ1, MDB9979SKZ2, MDPS6124RZ0

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
