GE Range Burner Not Heating? 9" Radiant Element WB30X24111 – Fix Dead or Uneven Burner Fast
If the 9" burner on your GE electric range won't heat, heats unevenly, or only glows in one spot — the radiant surface element has failed and needs to be replaced. In most GE freestanding and slide-in electric ranges, the 9" radiant element is the primary large-burner heating coil embedded beneath the glass cooktop surface. When it fails, the burner produces no heat, partial heat, or trips the breaker on activation. ⚡ One of the most common electric range repairs across GE's JB, JS, and JB860 range lineup. Part WB30X24111 (now superseded by WG02F10992) is the genuine OEM replacement that restores full burner output immediately — available in OEM and XPart premium aftermarket options.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range powers on and other burners work normally
- ✔ The 9" burner control knob or touch control is functional
- ✔ Wiring harness and terminal connections at the element are intact
- ✔ ONLY problem is the 9" burner not heating or heating unevenly
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- 9" burner won't heat on any setting
- Burner glows red in one area only — uneven heat distribution
- Burner trips breaker or blows fuse when activated
- Visible burn marks, cracks, or blistering on the element surface
✔ If these symptoms match, the radiant surface element is the most likely failed component in the system.
✔ In most cases, replacing this element restores full burner output immediately.
📦 Part Details
- Part Number: WB30X24111 (superseded by WG02F10992)

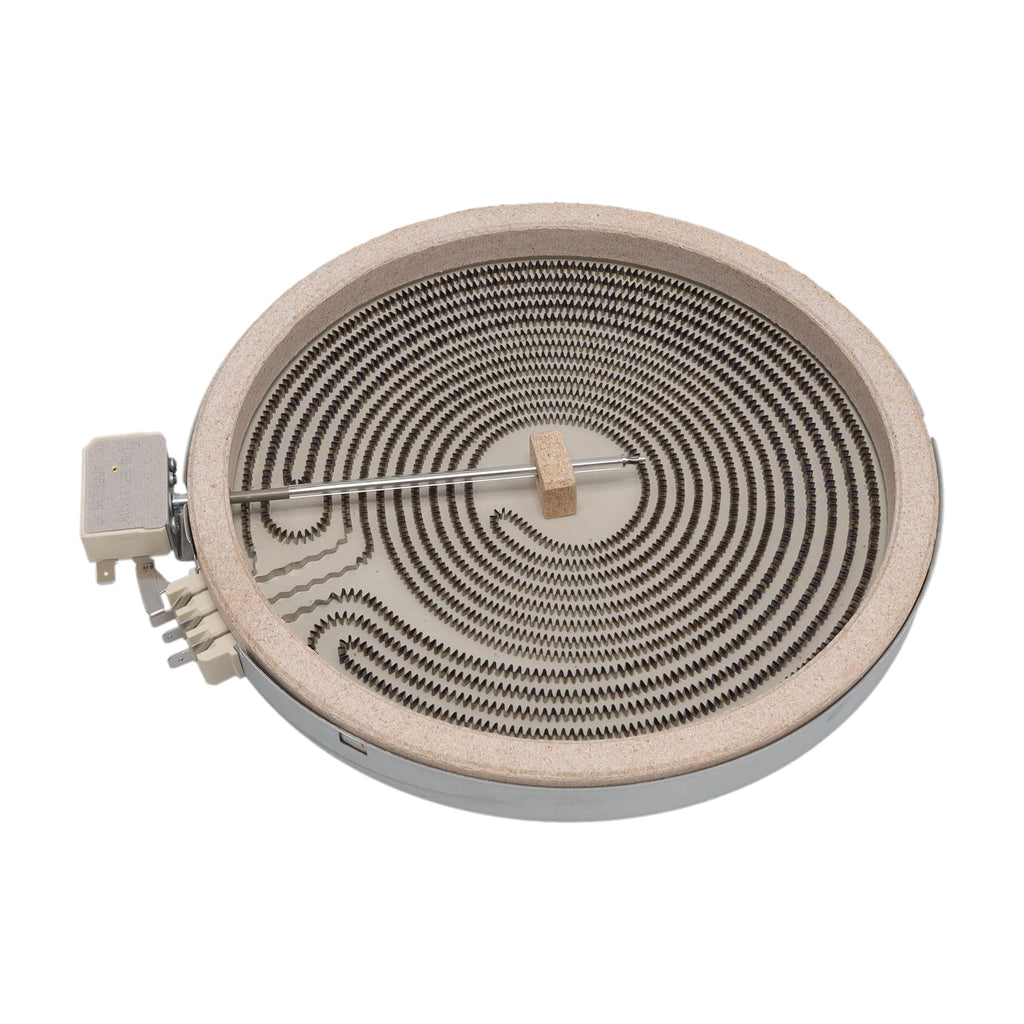

- Type: 9" Radiant Surface Element / Glass Cooktop Heating Element
- Replaces: WG02F10992, WB30T10133, 316282000, 11473134, WB30X49746
- Brands: GE, Hotpoint, Haier, Kenmore (GE-platform)
While the cooktop surface is open, inspect the element terminal block and wiring harness for heat damage or melted insulation — a failing element frequently damages the connector before it fully fails. If the terminal shows any discolouration or melting, replace it at the same time to prevent a repeat failure.
⚙️ Installation
Skill Level: MODERATE — 25–40 minutes. Disconnect power at the breaker before servicing — this is a 240V appliance. Allow the cooktop to cool completely. Lift or remove the glass cooktop surface to access the element mounting hardware beneath. Photograph the wire terminal connections before disconnecting. Remove the mounting screws, disconnect the terminals, and lift the old element free. Position the new element, secure the mounting hardware, reconnect the terminals, reinstall the cooktop surface, restore power, and test the burner on HI.
✓ Compatible Models
Confirmed compatible with JB750SJ1SS, JB750EJ1ES, JB860SJ1SS, JB860EJ1ES, JB700SJ1SS, JB645EK1ES, JB645RK1SS, JS760SL1SS, JS760EL1ES, JS630SF5SS, JB755SJ5SS, PB911DJ2BB, JP5030DJ1BB plus additional GE, Hotpoint, and Haier electric range models. Contact us to verify your model number before ordering.
💡 Pro Tip
The OEM WB30X24111/WG02F10992 is the factory-spec element with GE's exact wattage and coil geometry. The XPart premium aftermarket option meets the same electrical specs at a lower price point — ideal for older ranges where the cost of an OEM part approaches the appliance's remaining value. Both options ship from Canada and carry our standard return policy.
