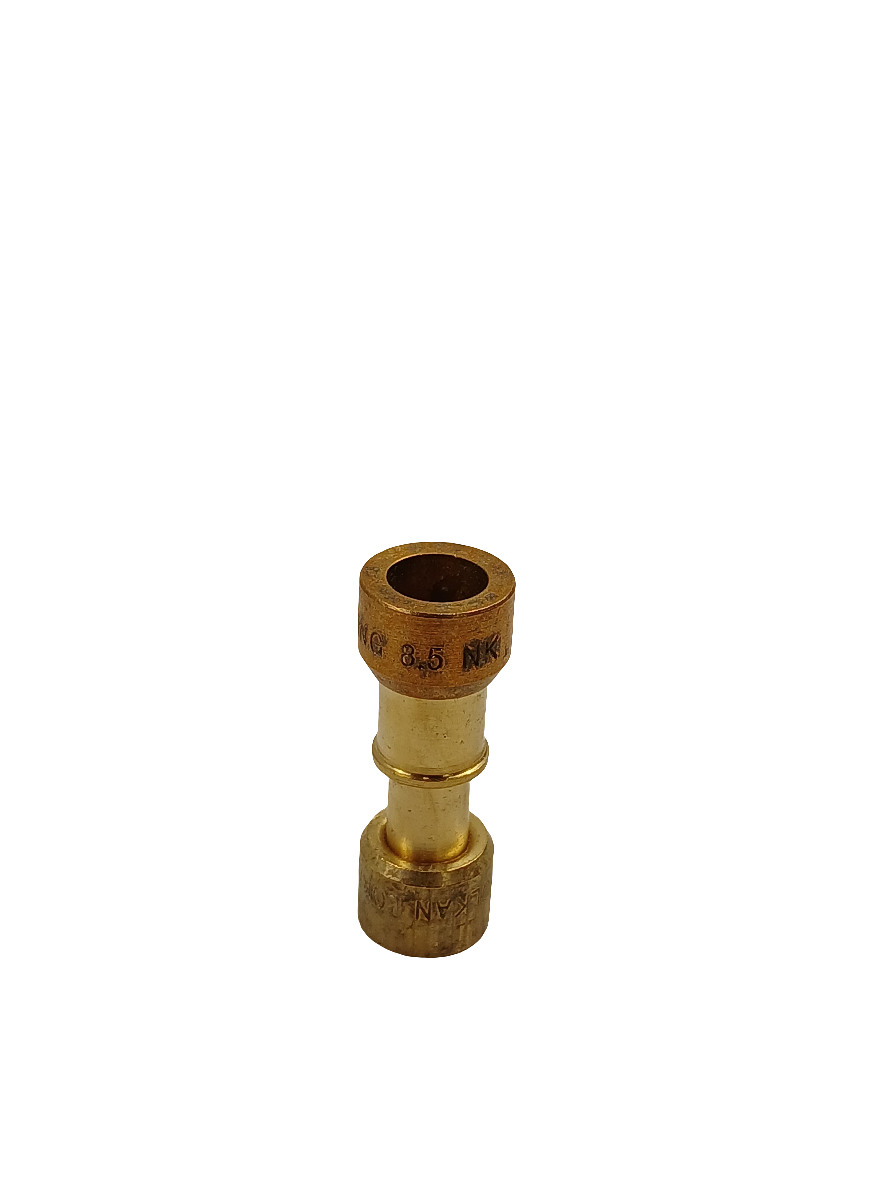

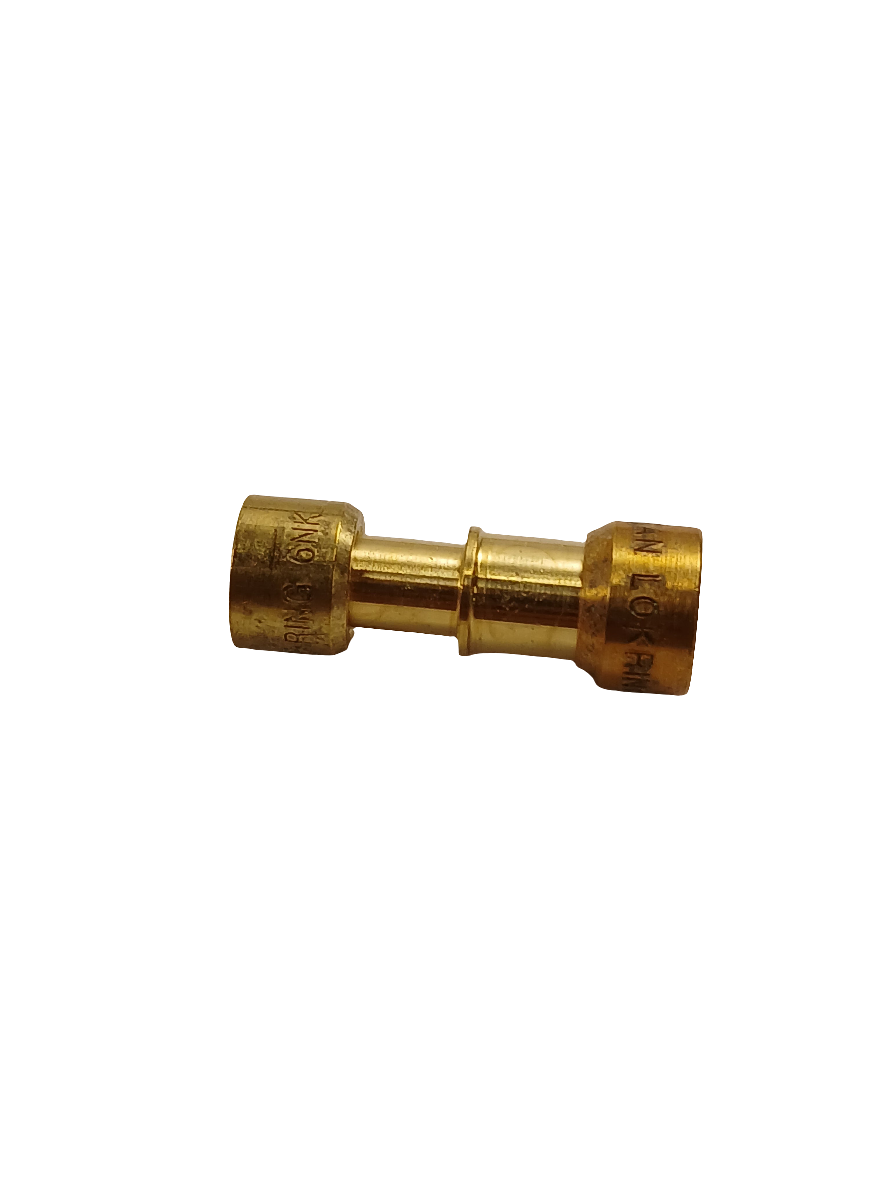

The WG03A03126 is the genuine OEM 8.5MM × 6MM Lokring refrigerant line coupling for GE refrigerators. A Lokring is a press-fit mechanical coupling used to join copper refrigerant tubing without soldering — it’s the factory-specified method for reconnecting refrigerant lines during compressor replacement on these models. Without the correct Lokring, the refrigerant circuit cannot be properly sealed, and the new compressor will fail to hold charge. This fitting replaces WR97X10076 and is required any time the compressor or refrigerant lines are disturbed on compatible GE, Profile, Café, and Monogram models — one of the widest-coverage Lokrings in the GE lineup, spanning GSS, GNE, GFE, GZS, GWE, GYE, ZIS, ZISS, CSB, CYE, CWE, PNE, PYE, PSS, and more.
✓ When Is This Part Needed?
This Lokring is required whenever the compressor or refrigerant lines are disconnected on compatible models. It is a single-use fitting — once pressed, it cannot be reused. Order one per connection point being remade. Confirm your model number below before ordering — this is the 8.5MM × 6MM size; verify the correct size for your specific connection point.
✓ Symptoms / Situations That Require This Part
✓ Part Details
Part Number: WG03A03126
Type: Compressor Lokring — Refrigerant Line Coupling
Size: 8.5MM × 6MM
Cross-Reference / Replaces: WR97X10076, 8.5/6NRMS00
Use: Single-use press-fit coupling — do not reuse
Tooling Required: Lokring press tool with 8.5MM jaw (not included)
Fits: GE, Profile, Café, Monogram — GSS, GNE, GFE, GZS, GWE, GYE, ZIS, ZISS, CSB, CYE, CWE, PNE, PYE, PSS, QNE, XFE, XNE, XSS, DFE, GBE, GDE, GIE, GTE, HRF, UNC, ZIF, ZIR, ZISB, ZWE, CFE, CZS, PWE, PZS series
Shipping: Free shipping
✓ Installation Notes
Skill Level: Professional only — Lokring press tooling and refrigerant certification required.
Professional Time: Part of compressor replacement procedure
- Recover refrigerant — Fully recover all refrigerant before disconnecting any lines.
- Cut and prepare tubing — Cut the refrigerant line cleanly and deburr the end. The tube must be round, clean, and free of burrs for the Lokring to seal properly.
- Slide Lokring onto tubing — Position the WG03A03126 Lokring over the tube end before inserting into the fitting.
- Insert tube to full depth — Push the tube into the Lokring body to the full insertion depth mark. Do not under-insert.
- Press with Lokring tool — Use the correct Lokring press jaw for 8.5MM fittings. Press until the tool clicks or bottoms out. Inspect the pressed ring for uniform compression.
- Leak test — After recharging, leak-test all Lokring connections with an electronic leak detector before returning the unit to service.
Never attempt to reuse a pressed Lokring. A single-use fitting that has been pressed cannot form a reliable seal a second time.
✓ Compatible Models
300+ compatible models — a selection of key series shown below. Contact us to confirm your specific model.
Contact us with your full model number to confirm compatibility before ordering.
GE compressor jobs often require two different Lokring sizes — the 8.5MM × 6MM (WG03A03126) and the 10.5MM × 8MM (WG03A03316) — one per refrigerant line connection point. Confirm which size applies to each connection on your specific model before recovering refrigerant. Once you cut the line, you’re committed. Having both sizes on hand before starting the job eliminates the risk of a mid-job parts wait with a customer’s fridge down.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
