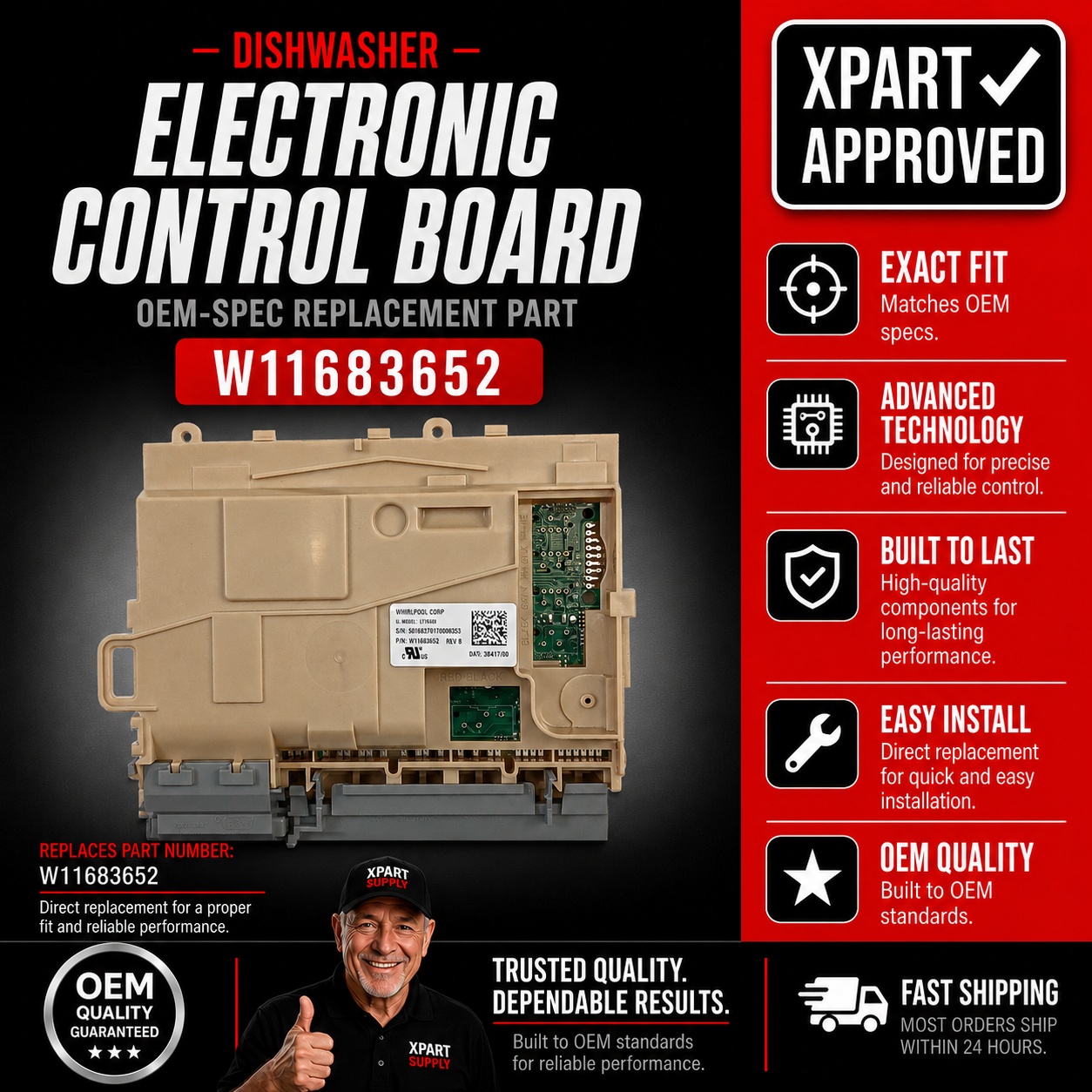

W11683652 Whirlpool Control Board for Dishwashers, Fixes No-Start, Error-Code or Mid-Cycle Stopping

Genuine Whirlpool electronic control board/main control for selected Whirlpool dishwashers. It manages dishwasher operating functions including cycle timing, sensors, motors, heating, draining, and dispensing.

The board receives information from dishwasher switches and sensors and manages major functions such as cycle timing, water filling, wash-pump operation, draining, heating and fault-code processing.

A defective control board may contribute to a dishwasher that will not start, stops during a cycle, displays repeated error codes or sends incorrect commands to electrical components.

Similar symptoms can also result from a failed door latch, user interface, wash pump, drain pump, inlet valve, heating circuit, sensor, damaged wiring or a poor electrical connection.

This is a model-specific programmed board. Confirm the complete dishwasher model and revision before ordering. Electronic control boards are normally non-returnable after installation. Disconnect electrical power before accessing the control enclosure or wiring.

Is This the Right Part?

Confirm the complete appliance model number before ordering.

Common Symptoms

• Dishwasher will not start — no response to any button
• Cycle stops unexpectedly mid-wash and will not resume
• Repeated error codes (F1E1, F2E2, F6E4, F7E1 or others) that will not clear
• Controls become unresponsive or erratic
• All indicator lights flashing simultaneously
• Dishwasher fills but does not advance through the cycle normally
• Components (pump, valve, heater) operate at the wrong time or not at all

Check Before Replacing

• Perform a hard reset first — disconnect power for 5 full minutes, then restore. Many error codes and all-lights-flashing conditions are caused by a temporary software fault that clears on reset, not a failed board.
• Test the door latch switch for continuity — a failed latch prevents the board from receiving a start signal and produces a dead-panel symptom identical to a failed board.
• Check incoming power at the outlet and breaker — a low-voltage or intermittent supply can cause erratic control behaviour.
• Inspect wiring harness connectors at the control board for corrosion, burn marks, or loose pins before condemning the board.

✅ Cross Reference Information

Part Details

Installation Notes

1. Disconnect power at the breaker before servicing — do not rely on the dishwasher power switch alone.
2. Control boards are static-sensitive — handle by edges only; use an anti-static wrist strap if available.
3. Photograph all wire harness connector positions before disconnecting the old board.
4. Transfer connectors one at a time to avoid mis-wiring.
5. Compare the new board with the original before installation — confirm connector count and layout match.
6. Do not overtighten mounting screws — board standoffs are plastic and will crack.
7. After installation, restore power and run a full test cycle. If error codes persist, perform a hard reset: disconnect power for 5 minutes, then restore.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

WDF341PAPB0, WDF341PAPB1, WDF341PAPB2, WDF341PAPM0, WDF341PAPM1, WDF341PAPM2, WDF341PAPT0, WDF341PAPT1, WDF341PAPT2, WDF341PAPW0, WDF341PAPW1, WDF341PAPW2

Fitment reminder: Match the complete model number including suffix and revision before ordering.
