Cycling Thermostat, Operating Thermostat, Temperature Control Thermostat

WP3387134, 3387134, AP6008270, PS11741405, EAP11741405, 8318268, 2011, 306910, 3387135, 3387139, WP3387134VP

Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Roper, Crosley (verify by model)

11060012000, 11060012001, 11060012002, 11060022010, 1106012510, 1106012990, 11060172000, 11060172001, 11060172002, 11060202990, 11060212990, 11060222511, 11060232000, 11060232001, 11060232002, 11060522900, 11060602990, 11060612990, 1106062110, 11060622990, 11060702990, 11060712990, 1106072011, 11060722990, 11060724990, 11060727990, 11060802990, 11060812990, 11060814990, 11060817990, 11060912990, 11061202010, 11061202011, 11061252010, 11061252011, 11061262311, 11061402310, 11061402311, 11061802000, 11061804000, 11061812000, 11061814000, 1106192310, 1106192311, 11062102310, 11062202100, 11062202101, 11062212100, 11062212101, 11062332511, 11062342510, 11062512100, 11062512101, 11062512102, 11062514100, 11062514101, 11062514102, 11062602100, 11062602101, 11062612100, 11062612101, 11062622100, 11062622101, 11062702100, 11062702101, 11062702102, 11062712100, 11062712101, 11062722100, 11062722101, 11062722102, 11062724100, 11062724101, 11062802100, 11062802101, 11062802102, 11062812100, 11062812101, 11062822100, 11062822101, 11062822102, 11062824100, 11062824101, 11062824102, 11062832100, 11062832101, 11062842100, 11062842101, 11062852100, 11062852101, 11062854100, 11062854101, 11062872100, 11062872101, 11062872102, 11062902100, 11062904100, 11062912100, 11062922100, 11062924100, 11063012100, 11063012101, 11063012102, 11063014100, 11063014101, 11063014102, 11063022100, 11063022101, 11063022102, 11063024100, 11063024101, 11063024102, 11063032100, 11063032101, 11063032102, 11063034100, 11063034101, 11063034102, 11063036100, 11063036101, 11063036102, 11063102100, 11063102101, 11063112100, 11063912100, 11064112200, 11064202200, 11064202201, 11064212200, 11064212201, 11064602300, 11064602301, 11064612200, 11064622300, 11064622301, 11064632300, 11064632301, 11064642400, 11064652400, 11064672400, 11064712200, 11064712201, 11064722400, 11064732400, 11064742400, 11064812200,11064812201, 11064832400, 11064842400, 11064852400, 11064854400, 11064872400, 11064872401, 11064882400, 11064882401, 11064892400, 11064892401, 11064894400, 11064894401, 11064902200, 11064902201, 11064912200, 11064922200, 11064922201, 11064924200, 11064924201, 11064932200, 11064932201, 11064942300, 11064944300, 11064946300, 11064952300, 11064954300, 11064956300, 11064962300, 11064964300, 11064966300, 11065102310, 11065132410, 11065132411, 11065202310, 11065212610, 11065822400, 11065922400, 11065922401, 11065924400, 11065924401, 11065926400, 11065926401, 11065942400, 11065942401, 11065944400, 11065944401, 11065946401, 11065956400, 11065962400, 11065962401, 11065964400, 11065964401, 11065966400, 11065966401, 11066051690, 11066058690, 11066071690, 11066112500, 11066112501, 11066512690, 11066512691, 11066512692, 11066512694, 11066514690, 11066514691, 11066514692, 11066514694, 11066522500, 11066522501, 11066524500, 11066524501, 11066611690, 11066611691, 11066611692, 11066612690, 11066612691, 11066612692, 11066642500, 11066642501, 11066652500, 11066652501, 11066662500, 11066662501, 11066702690, 11066702691, 11066702692, 11066712690, 11066712691, 11066712692, 11066712694, 11066722690, 11066722691, 11066722692, 11066722694, 11066732500, 11066732501, 11066742500, 11066742501, 11066752500, 11066752501, 11066801690, 11066801691, 11066801692, 11066801694, 11066808690, 11066808691, 11066808692, 11066808694, 11066812690, 11066812691, 11066812692, 11066812694, 11066814690, 11066814691, 11066814692, 11066814694, 11066822690, 11066822691, 11066822692, 11066822694, 11066824690, 11066824691, 11066824692, 11066824694, 11066832500, 11066832501, 11066842500, 11066842501, 11066852690, 11066852691, 11066852692, 11066852694, 11066854690, 11066854691, 11066854692, 11066854694, 11066862500, 11066862501, 11066864500, 11066864501, 11066872500, 11066872501, 11066901690, 11066901691, 11066901692, 11066902690, 11066902691, 11066902692, 11066904690, 11066904691, 11066904692, 11066912690, 11066912691, 11066912692, 11066914690, 11066914691, 11066914692, 11066922500, 11066922501, 11066924500, 11066924501, 11066926500, 11066926501, 11066932690, 11066932691, 11066934690, 11066934691, 11066942500, 11066942501, 11066944500, 11066944501, 11066962500, 11066962501, 11066964500, 11066964501, 11066966500, 11066966501, 11067322600, 11067332600, 11067342700, 11067402600, 11067422600, 11067432600, 11067442600, 11067522600, 11067532600, 11067542600, 11067622600, 11067632600, 11067642600, 11067652600, 11067654600, 11067732790, 11067732791, 11067732794, 11067741600, 11067751600, 11067761600, 11067832790, 11067832791, 11067832794, 11067834790, 11067834791, 11067834794, 11067902790, 11067902791, 11067904790, 11067904791, 11068202790, 11068202794, 11068322700, 11068332700, 11068402700, 11068402701, 11068422700, 11068432700, 11068442700, 11068522700, 11068532700, 11068622700, 11068632700, 11068652700, 11068702890, 11068702894, 11068712890, 11068712894, 11068722700, 11068732700, 11069012990, 11069032990, 11069202990, 11069422800, 11069422801, 11069432800, 11069432801, 11069522800, 11069532800, 11069622800, 11069632800, 11069652800, 11069722800, 11069727800, 11069732800, 11069737800, 11069812990, 11069902890, 11069912990, 11070012000, 11070012001, 11070012002, 11070012003, 11070022010, 11070102312, 1107012511, 1107012512, 11070172000, 11070172001, 11070172002, 11070172003, 11070202990, 11070202991, 11070212990, 11070212991, 11070222510, 11070222511, 11070232000, 11070232001, 11070232002, 11070522900, 11070602990, 11070602991, 11070612990, 11070612991, 1107062110, 1107062111, 11070622990, 11070622991, 11070702990, 11070702991, 11070712990, 11070712991, 1107072010, 11070722990, 11070722991, 11070724990, 11070724991, 11070727990, 11070802990, 11070802991, 11070812990, 11070812991, 11070814990, 11070814991, 11070817990, 11070832990, 11070832991, 11070842990, 11070842991, 11070852990, 11070852991, 11070854990, 11070854991, 11070857990, 11071202010, 11071202011, 11071202012, 11071252010, 11071252011, 11071252012, 11071262311, 11071262312, 11071402310, 11071402311, 11071802000, 11071802001, 11071804000, 11071804001, 11071812000, 11071812001, 11071814000, 11071814001, 1107192311, 1107192312, 11072102311, 11072202100, 11072202101, 11072212100, 11072212101, 11072331511, 11072332510, 11072332511, 11072332512, 11072342512, 11072512100, 11072512101, 11072512102, 11072514100, 11072514101, 11072514102, 11072602100, 11072602101, 11072612100, 11072612101, 11072622100, 11072622101, 11072702100, 11072702101, 11072702102, 11072712100, 11072712101, 11072722100, 11072722101, 11072722102, 11072724100, 11072724101, 11072802100, 11072802101, 11072802102, 11072812100, 11072812101, 11072822100, 11072822101, 11072822102, 11072824100, 11072824101, 11072824102, 11072832100, 11072832101, 11072842100, 11072842101, 11072852100, 11072852101, 11072854100, 11072854101, 11072872100, 11072872101, 11072872102, 11072902100, 11072904100, 11072912100, 11072922100, 11072924100, 11073012100, 11073012101, 11073012102, 11073014100, 11073014101, 11073014102, 11073022100, 11073022101, 11073022102, 11073024100, 11073024101, 11073024102, 11073032100, 11073032101, 11073032102, 11073034100, 11073034101, 11073034102, 11073036100, 11073036101, 11073036102, 11073102100, 11073102101, 11073112100, 11073912100, 11074112200, 11074202200, 11074202201, 11074212200, 11074212201, 11074602300, 11074602301, 11074612200, 11074622300, 11074622301, 11074632300, 11074632301, 11074642400, 11074652400, 11074672400, 11074712200, 11074712201, 11074722400, 11074732400, 11074742400, 11074812200, 11074812201, 11074832400, 11074842400, 11074842500, 11074852400, 11074854400, 11074872400, 11074872401, 11074882400, 11074882401, 11074892400, 11074892401, 11074894400, 11074894401, 11074902200, 11074902201, 11074912200, 11074922200, 11074922201, 11074924200, 11074924201, 11074932200, 11074932201, 11074942300, 11074944300, 11074946300, 11074952300, 11074954300, 11074956300, 11074962300, 11074964300, 11074966300, 11075102310, 11075102311, 11075132410, 11075132412, 11075202310, 11075202311, 11075822400, 11075922400, 11075922401, 11075924400, 11075924401, 11075926400, 11075926401, 11075942400, 11075942401, 11075944400, 11075944401, 11075946400, 11075946401, 11075962400, 11075962401, 11075964400, 11075964401, 11075966400, 11075966401, 11076051690, 11076051691, 11076058690, 11076058691, 11076071690, 11076071691, 11076112500, 11076112501, 11076512690, 11076512691, 11076512692, 11076512693, 11076512694, 11076512695, 11076512696, 11076514690, 11076514691, 11076514692, 11076514693, 11076514694, 11076514695, 11076514696, 11076522500, 11076522501, 11076524500, 11076524501, 11076611690, 11076611691, 11076611692, 11076611693, 11076612690, 11076612691, 11076612692, 11076612693, 11076642500, 11076642501, 11076652500, 11076652501, 11076662500, 11076662501, 11076702690, 11076702691, 11076702692, 11076702693, 11076712690, 11076712691, 11076712692, 11076712693, 11076712694, 11076712695, 11076722690, 11076722691, 11076722692, 11076722693, 11076722694, 11076722695, 11076732500, 11076732501, 11076742500, 11076742501, 11076752500, 11076752501, 11076801690, 11076801691, 11076801692, 11076801693, 11076801694, 11076801695, 11076808690, 11076808691, 11076808692, 11076808693, 11076808694, 11076808695, 11076812690, 11076812691, 11076812692, 11076812693, 11076812694, 11076812695, 11076814690, 11076814691, 11076814692, 11076814693, 11076814694, 11076814695, 11076822690, 11076822691, 11076822692, 11076822693, 11076822694, 11076822695, 11076824690, 11076824691, 11076824692, 11076824693, 11076824694, 11076824695, 11076832500, 11076832501, 11076842500, 11076842501, 11076852690, 11076852691, 11076852692, 11076852693, 11076852694, 11076852695, 11076854690, 11076854691, 11076854692, 11076854693, 11076854694, 11076854695, 11076862500, 11076862501, 11076862692, 11076864501, 11076872500, 11076872501, 11076901690, 11076901691, 11076901692, 11076901693, 11076902690, 11076902691, 11076902692, 11076902693, 11076904690, 11076904691, 11076904692, 11076904693, 11076912690, 11076912691, 11076912692, 11076912693, 11076914690, 11076914691, 11076914692, 11076914693, 11076922500, 11076922501, 11076922502, 11076924500, 11076924501, 11076924502, 11076926500, 11076926501, 11076926502, 11076932690, 11076932691, 11076932692, 11076934690, 11076934691, 11076934692, 11076942500, 11076942501, 11076942502, 11076944500, 11076944501, 11076944502, 11076962500, 11076962501, 11076962502, 11076964500, 11076964501, 11076964502, 11076966500, 11076966502, 11077322600, 11077332700, 11077342700, 11077422600, 11077442600, 11077522600, 11077532600, 11077542600, 11077622600, 11077632600, 11077642600, 11077652600, 11077654600, 11077732790, 11077732791, 11077732792, 11077732794, 11077732795, 11077741600, 11077751600, 11077761600, 11077832790, 11077832791, 11077832792, 11077832794, 11077832795, 11077834790, 11077834791, 11077834792, 11077834794, 11077834795, 11077902790, 11077902791, 11077902792, 11077904790, 11077904791, 11077904792, 11078202790, 11078202794, 11078202795, 11078322700, 11078332700, 11078422700, 11078432700, 11078442700, 11078522700, 11078532700, 11078622700, 11078632700, 11078652700, 11078702890, 11078702894, 11078702895, 11078712890, 11078712894, 11078712895, 11078722700, 11078732700, 11079012990, 11079032990, 11079202990, 11079422800, 11079422801, 11079432800, 11079432801, 11079522800, 11079532800, 110796228, 11079622800, 11079632800, 11079652800, 11079722800, 11079722801, 11079727800, 11079727801, 11079732800, 11079737800, 11079812990, 11079902890, 11079912990, 11080764000, 11084762300, 11084762301, 11084764300, 11084764301, 11086405140, 11086405150, 11086405160, 11086405840, 11086405850, 11086405860, 11086407140, 11086407150, 11086407160, 11086407840, 11086407850, 11086407860, 11086983130, 11086983830, 11086984120, 11086984820, 11087405140, 11087405150, 11087405160, 11087405840, 11087405850, 11087405860, 11087407150, 11087407160, 11087407850, 11087407860, 11087983130, 11087983830, 11087984120, 11087984820, 11088762790, 11088762791, 11088762792, 11088762793, 11088764790, 11088764791, 11088764792, 11088764793, 11089519800, 11092962100, 11092962101, 11092962102, 11092964100, 11092964101, 11092964102, 11092966100, 11092966101, 11092966102, 11092972100, 11092972101, 11092972102, 11092974100, 11092974101, 11092974102, 11092976100, 11092976101, 11092976102, 11094762300, 11094962300, 11094964300, 11094966300, 11094972300, 11094974300, 11094976300, 11096250100, 11096263100, 11096263800, 11096264100, 11096264800, 11096271100, 11096271600, 11096271800, 11096272100, 11096272600, 11096272800, 11096273100, 11096273600, 11096273800, 11096274100, 11096274600, 11096274800, 11096278100, 11096278800, 11096280100, 11096280600, 11096280800, 11096281100, 11096281800, 11096282100, 11096282800, 11096283100, 11096283110, 11096283800, 11096283810, 11096284100, 11096284110, 11096284800, 11096284810, 11096291100, 11096291110, 11096291800, 11096291810, 11096292100, 11096292110, 11096292800, 11096292810, 11096293100, 11096293110, 11096293500, 11096293510, 11096293800, 11096293810, 11096350100, 11096363100, 11096363800, 11096364100, 11096364800, 11096374200, 11096374210, 11096375100, 11096375800, 11096407160, 11096468100, 11096468800, 11096469100, 11096469800, 11096478100, 11096478800, 11096550100, 11096550110, 11096550120, 11096551200, 11096551210, 11096551220, 11096551230, 11096562200, 11096563100, 11096563110, 11096563120, 11096563800, 11096563810, 11096563820, 11096564100, 11096564110, 11096564120, 11096564220, 11096564420, 11096564800, 11096564810, 11096564820, 11096565110, 11096565120, 11096565210, 11096565220, 11096566200, 11096566210, 11096566400, 11096566410, 11096572100, 11096572110, 11096572120, 11096572130, 11096572800, 11096572810, 11096572820, 11096572830, 11096573100, 11096573120, 11096573200, 11096573220, 11096573230, 11096573800, 11096573820, 11096574100, 11096574120, 11096574800, 11096574820, 11096575100, 11096575110, 11096575200, 11096575810, 11096576200, 11096576210, 11096576400, 11096576410, 11096577200, 11096577210, 11096577220, 11096577230, 11096577400, 11096577410, 11096577420, 11096577430, 11096578100, 11096578110, 11096578120, 11096578800, 11096578810, 11096578820, 11096580100, 11096580110, 11096580120, 11096580600, 11096580610, 11096580620, 11096580800, 11096580810, 11096580820, 11096581100, 11096581110, 11096581120, 11096581200, 11096581210, 11096581220, 11096581800, 11096581810, 11096581820, 11096582100, 11096582110, 11096582120, 11096582800, 11096582810, 11096582820, 11096583100, 11096583110, 11096583120, 11096583140, 11096583210, 11096583220, 11096583240, 11096583800, 11096583810, 11096583820, 11096583840, 11096584100, 11096584110, 11096584120, 11096584140, 11096584800, 11096584810, 11096584820, 11096584840, 11096585110, 11096585120, 11096585200, 11096585210, 11096585400, 11096585410, 11096585810, 11096585820, 11096586200, 11096586210, 11096586400, 11096586410, 11096587200, 11096587210, 11096587400, 11096587410, 11096588200, 11096588210, 11096588400, 11096588410, 11096589200, 11096589210, 11096589400, 11096589410, 11096590100, 11096590110, 11096590120, 11096590130, 11096590140, 11096590800, 11096590810, 11096590820, 11096590830, 11096590840, 11096591200, 11096591210, 11096591220, 11096591230, 11096591240, 11096591400, 11096591410, 11096591420, 11096591430, 11096591440, 11096592200, 11096592210, 11096592220, 11096592230, 11096592240, 11096592400, 11096592410, 11096592420, 11096592430, 11096592440, 11096593210, 11096593230, 11096593410, 11096593430, 11097250100, 11097263100, 11097263800, 11097264100, 11097264800, 11097271100, 11097271600, 11097271800, 11097272100, 11097272600, 11097272800, 11097273100, 11097273600, 11097273800, 11097274100, 11097274600, 11097274800, 11097278100, 11097278800, 11097280100, 11097280600, 11097280800, 11097281100, 11097281800, 11097282100, 11097282800, 11097283100, 11097283110, 11097283800, 11097283810, 11097284100, 11097284110, 11097284800, 11097284810, 11097291100, 11097291110, 11097291800, 11097291810, 11097292100, 11097292110, 11097292800, 11097292810, 11097293100, 11097293110, 11097293500, 11097293510, 11097293800, 11097293810, 11097350100, 11097363100, 11097363800, 11097364100, 11097364800, 11097374200, 11097374210, 11097375100, 11097375800, 11097466200, 11097466210, 11097466400, 11097466410, 11097468100, 11097468800, 11097469100, 11097469800, 11097478100, 11097478800, 11097550100, 11097550110, 11097550120, 11097551200, 11097551210, 11097551220, 11097551230, 11097562200, 11097563100, 11097563110, 11097563120, 11097563800, 11097563810, 11097563820, 11097564100, 11097564110, 11097564120, 11097564420, 11097564800, 11097564810, 11097564820, 11097565110, 11097565120, 11097565210, 11097565220, 11097566200, 11097566210, 11097566400, 11097566410, 11097572100, 11097572110, 11097572120, 11097572130, 11097572800, 11097572810, 11097572820, 11097572830, 11097573100, 11097573110, 11097573120, 11097573200, 11097573210, 11097573220, 11097573230, 11097573800, 11097573810, 11097573820, 11097574100, 11097574110, 11097574120, 11097574800, 11097574810, 11097574820, 11097575100, 11097575110, 11097575200, 11097575810, 11097576200, 11097576210, 11097576400, 11097576410, 11097577200, 11097577210, 11097577220, 11097577230, 11097577400, 11097577410, 11097577420, 11097577430, 11097578100, 11097578110, 11097578120, 11097578800, 11097578810, 11097578820, 11097580100, 11097580110, 11097580120, 11097580600, 11097580610, 11097580620, 11097580800, 11097580810, 11097580820, 11097581100, 11097581110, 11097581120, 11097581200, 11097581210, 11097581220, 11097581800, 11097581810, 11097581820, 11097582100, 11097582110, 11097582120, 11097582800, 11097582810, 11097582820, 11097583100, 11097583110, 11097583120, 11097583130, 11097583140, 11097583210, 11097583220, 11097583230, 11097583240, 11097583800, 11097583810, 11097583820, 11097583830, 11097583840, 11097584100, 11097584110, 11097584120, 11097584130, 11097584140, 11097584800, 11097584810, 11097584820, 11097584830, 11097584840, 11097585110, 11097585120, 11097585200, 11097585210, 11097585400, 11097585410, 11097585810, 11097585820, 11097586200, 11097586210, 11097586400, 11097586410, 11097587200, 11097587210, 11097587400, 11097587410, 11097588200, 11097588210, 11097588400, 11097588410, 11097589110, 11097589120, 11097589140, 11097589200, 11097589210, 11097589400, 11097589410, 11097589810, 11097589820, 11097589840, 11097590100, 11097590110, 11097590120, 11097590130, 11097590140, 11097590800, 11097590810, 11097590820, 11097590830, 11097590840, 11097591200, 11097591210, 11097591220, 11097591230, 11097591240, 11097591400, 11097591410, 11097591420, 11097591430, 11097591440, 11097592200, 11097592210, 11097592220, 11097592230, 11097592240, 11097592400, 11097592410, 11097592420, 11097592430, 11097592440, 11097593200, 11097593210, 11097593230, 11097593400, 11097593410, 11097593430, 11098576200, 11098576400, 11098762790, 11098762791, 11098762792, 11098764790, 11098764791, 11098764792, 11099576200, 11099576400, 110C60022011, 110C60102310, 110C60122510, 110C60122511, 110C60222510, 110C60242510, 110C60242511, 110C61102011, 110C61292011, 110C61292012, 110C61402311, 110C61492310, 110C62332510, 110C62332511, 110C62442511, 110C65132410, 110C65132411, 110C66652502, 110C70832990, 110C70834990, 110C71182011, 110C71182013, 110C72442510, 110C72442511, 110C72442512, 110C73512201, 110C79592800, 110C79722800, 110C92962200, SYSTEM, 110LGR5644EQ0, 1CWD5100VQ0, 1CWED4800DQ0, 1CWED5100VQ0, 1CWED5100VQ1, 1CWED5200VQ0, 1CWED5200VQ1, 1CWGD4800DQ0, 1CWGD5100VQ1, 1CWGD5200VQ0, 1CWGD5200VQ1, 1CWGD5300SQ0, 1CWGD5790SQ0, 1CWGD5790VQ0, 1CWGD5790VQ1, 1DNET3205TQ0, 1MWED1750EM0, 3CG2901XSN1, 3CG2901XSN3, 3CG2901XSW1, 3CG2901XSW3, 3CGP2951BN0, 3CGP2951BW0, 7EWED1510YM0, 7EWGD1510YM0, 7EWGD1510YM1, 7MBPS8843MQ0, 7MBPS8843MQ1, 7MDKG1501WQ0, MODEL, 7MD.KG1501WQ0, 7MKGDS400DW0, 7MLGC9900PW0, 7MLGD8900PW0, 7MLGR4634JQ3, 7MLGR4634JQ4, 7MLGR4634JT3, 7MLGR4634JT4, 7MLGR4634PQ0, 7MLGR4634PT0, 7MLGR5620MQ0, 7MLGR5620MQ1, 7MLGR5620MQ2, 7MLGR5620PQ0, 7MLGR5620PT0, 7MLGR7620MW0, 7MLGR7620MW1, 7MLGR7648MQ0, 7MLGR7648MQ1, 7MLGR7648MT0, 7MLGR7648MT1, 7MLGR7648PG0, 7MLGR7648PQ0, 7MLGR7648PT0, 7MLGR7648PW0, 7MLGR8620PW0, 7MLGR8620PW1, 7MLTG8234PQ1, 7MMEDC300BW0, 7MMEP0080WW0, 7MMEP0080WW1, 7MMGD6630TM0, 7MMGD6630TM1, 7MMGD6630TQ0, 7MMGD6630TQ1, 7MMGDC300BW0, 7MMGP0030VQ0, 7MMGP0035WQ0, 7MMGP0070VM0, 7MMGP0075WW0, 7MNGH8000TQ0, 7MNGH8000TT0, 7MRGX4634MQ0, 7MRGX4634MQ1, 7MSGDS800LQ0, 7MSGDS800LQ1, 7MSGDS800MQ0, 7MSGDS800MQ1, 7MSGDX600LQ0, 7MSGDX600LQ1, 7MSGDX600MQ0, 7MSGDX600MQ1, 7MWED1600BM0, 7MWED1600BM1, 7MWED1650EQ0, 7MWED1730JQ0, 7MWED1800EM0, 7MWED2040JM0, 7MWED2140JB0, 7MWET3300EQ0, 7MWET3300EQ1, 7MWET4027HW0, 7MWG44500ST0, 7MWG445500SQ0, 7MWG45500SQ0, 7MWG45500SQ1, 7MWG45500ST0, 7MWG45500ST1, 7MWG66007XQ0, 7MWG66700SQ0, 7MWG66700SQ1, 7MWG66700ST0, 7MWG66700ST1, 7MWG66705WM0, 7MWG66705WM1, 7MWG66705WT0, 7MWG66705WT1, 7MWG66720SM0, 7MWG66720SN0, 7MWG66725WW0, 7MWG66725WW1, 7MWG66740SG0, 7MWG66740SM0, 7MWG66740SW0, 7MWG66800WQ0, 7MWG87600SM0, 7MWG87640SW0, 7MWG87660SM0, 7MWGD1500AQ2, 7MWGD1501AW0, 7MWGD1600BM0, 7MWGD1600BM1, 7MWGD1600BM2, 7MWGD1600BM3, 7MWGD1600DQ0, 7MWGD1600DQ1, 7MWGD1601AW0, 7MWGD1601AW2, 7MWGD1601AW3, 7MWGD1730JQ0, 7MWGD1750EQ0, 7MWGD1750EQ1, 7MWGD1800DM0, 7MWGD1800DM1, 7MWGD1800EM0, 7MWGD1800EM1, 7MWGD1850EI0, 7MWGD1850EI1, 7MWGD1860EM0, 7MWGD1930JM0, 7MWGD2040JM0, 7MWGD2140JB0, 7MWGD9014YQ0, 7MWGD9014YQ1, 7MWGD9015YW0, 7MWGD9015YW1, 7MWGD9016YM0, 7MWGD9919EM0, 7MWGD9919EM1, 7MWGT3300EQ0, 7MWGT4027HW0, 7MWGT4027HW1, 8530040, 8543000, 8BLGR5636JQ0, 8BLGR5636JQ1, 8LGC7858AN0, 8LGC7858AN2, 8LGR5636FQ0, 8LGR5636FQ1, AED4370TQ0, AED4470TQ0, AED4475TQ0, AED4475TQ1, AED4516HW0, AED4516MW0, AED4675EW0, AED4675YQ0, AED4675YQ1, AGD4370TQ0, AGD4470TQ0, AGD4475TQ0, AGD4475TQ1, AGD4475TQ2, AGD4675YQ0, AGD4675YQ2, AGD4675YQ3, BYCD4932W0, BYCD4933W0, BYCWD6274W0, BYCWD6274W1, BYCWD6274W2, BYCWD6274W3, BYCWD6274W4, CE2950XYG1, CE2950XYG2, CE2950XYG3, CE2950XYN1, CE2950XYN2, CE2950XYN3, CE2950XYW1, CE2950XYW2, CE2950XYW3, CED123SEW0, CED126SBW0, CED126SBW1, CED126SDW0, CED126SDW1, CED126SXQ0, CED126SXQ1, CED137SBW0, CED137SDW0, CED137SDW1, CED137SXQ0, CED7006GW0, CEDS1043VQ0, CEDS1043VQ1, CEDS563MQ0, CEDS563MQ1, CEDS563RB1, CEDS563RQ0, CEDS563RQ1, CEDS563SQ0, CEDS563ST0, CEDS663SB0, CEDS663SQ0, CEDS774JQ0, CEDS774JQ1, CEDS774MQ0, CEDS774MQ1, CEDS832VQ0, CEDS832VQ1, CEDX463JQ0, CEDX463JQ1, CEDX463MQ0, CEDX463MQ1, CEDX463RQ0, CEDX463RQ1, CEDX463RT0, CEDX463RT1, CEDX463SQ0, CEDX563JQ0, CEDX563JQ1, CEDX563JQ2, CEDX631VQ1, CEE2990AG1, CEE2990AG2, CEE2990AG3, CEE2990AN1, CEE2990AN2, CEE2990AN3, CEE2990AW1, CEE2990AW2, CEE2990AW3, CEE2990EW0, CEM2940TQ0, CEM2940TQ1, CEP2960EW0, CEP2960JQ0, CG2951XYG1, CG2951XYG2, CG2951XYG3, CG2951XYN1, CG2951XYN2, CG2951XYN3, CG2951XYW1, CG2951XYW2, CG2951XYW3, CG2951XYW4, CGD126SBW0, CGD126SBW1, CGD126SBW2, CGD126SDW0, CGD126SDW1, CGD126SDW2, CGD126SDW3, CGD126SXQ0, CGD126SXQ1, CGD126SXQ2, CGD137SBW1, CGD137SDW0, CGD137SDW1, CGD137SDW2, CGD137SDW3, CGD137SXQ0, CGD137SXQ1, CGD7006GW0, CGD7006GW1, CGDS1043VQ0, CGDS1043VQ1, CGDS563MQ0, CGDS563MQ1, CGDS563RB1, CGDS563RQ0, CGDS563RQ1, CGDS563SQ0, CGDS563ST0, CGDS663SB0, CGDS663SQ0, CGDS774JQ0, CGDS774JQ1, CGDS774MQ0, CGDS774MQ1, CGDS832VQ0, CGDS832VQ1, CGDX463JQ0, CGDX463JQ1, CGDX463JQ2, CGDX463MQ0, CGDX463MQ1, CGDX463RQ0, CGDX463RQ1, CGDX463RT0, CGDX463RT1, CGDX463SQ0, CGDX563JQ0, CGDX563JQ1, CGDX563JQ2, CGDX631VQ1, CGE2991AG1, CGE2991AG2, CGE2991AG3, CGE2991AN1, CGE2991AN2, CGE2991AN3, CGE2991AW1, CGE2991AW2, CGE2991AW3, CGE2991EW0, CGE2991EW1, CGM2941TQ0, CGM2941TQ1, CGM2941TQ2, CGP2961EW0, CGP2961EW1, CGP2961JQ0, DE713, DG713, DG7400, DG9700, DG9800, EED4300SQ0, EED4300TQ0, EED4300VQ0, EED4300VQ1, EED4400SQ0, EED4400TQ0, EED4400VQ0, EED4400WQ0, EED4400WQ1, EGD4300SQ0, EGD4300TQ0, EGD4300VQ0, EGD4300VQ1, EGD4400SQ0, EGD4400TQ0, EGD4400VQ0, EGD4400WQ0, EGD4400WQ1, EL3030WL1, EL3030WW1, EL4030VL1, EL4030VW1, EL5030VL1, EL5030VW1, EMLGR7646AN1, GCE2900XSW3, GCE2900XSW4, GCEM2900JQ0, GCEM2900JQ1, GCEM2990LQ0, GCEM2990MQ0, GCEM2990MQ1, GCEM2990TQ0, GCEM2990TQ1, GCG2901XSW4, GCG2901XSW5, GCGM2901JQ0, GCGM2901JQ1, GCGM2991LQ0, GCGM2991MQ0, GCGM2991MQ1, GCGM2991TQ0, GCGM2991TQ1, GCGM2991TQ2, GDE713, GDG713, GDG7400, GDG9700, GDG9800, GEC9858EQ0, GEC9858EQ1, GEC9858EZ0, GEC9858EZ1, GEQ8858EQ0, GEQ8858EZ0, GGC9858EQ0, GGC9858EQ1, GGC9858EZ0, GGC9858EZ1, GGQ8858EQ0, GGQ8858EQ1, GGQ8858EZ0, GGQ8858EZ1, GL3030WL1, GL3030WW1, GL4030VL1, GL4030VW1, GL5030VL1, GL5030VW1, HED4300TQ0, HED4400TQ0, HGD4300TQ0, HGD4400TQ0, IED4300SQ0, IED4300TQ0, IED4400SQ0, IED4400TQ0, IED4400VQ0, IED4400VQ1, IES5000RQ0, IES5000RQ1, IGD4300SQ0, IGD4300TQ0, IGD4400SQ0, IGD4400TQ0, IGD4400VQ1, IGD4400VQ2, IGS5000RQ0, IGS5000RQ1, IJ70001, IJ70002, IJ70003, IJ72000, IJ72001, IJ72003, IJ80001, IJ80002, IJ82001, IJ82002, IJ84001, IJ84002, IP70000, IP72000, IP72001, IP80000, IP80001, IP82000, IP82001, IP84000, IP84001, IS72000, IS80000, IS82000, IV85000, IV85001, IV86000, IV86001, IV87000, IV87001, JG4ST700GQ0, JG4ST700GZ0, KEYE660WAL1, KEYE660WWH1, KEYE664WAL1, KEYE664WWH1, KEYE665BAL0, KEYE665BAL1, KEYE665BAL2, KEYE665BWH0, KEYE665BWH1, KEYE665BWH2, KEYE665BWH3, KEYE670BAL0, KEYE670BAL1, KEYE670BAL2, KEYE670BAL3, KEYE670BWH0, KEYE670BWH1, KEYE670BWH2, KEYE670BWH3, KEYE677BWH0, KEYE677BWH1, KEYE677BWH2, KEYE677BWH3, KEYE678BAL0, KEYE678BAL1, KEYE679BBL0, KEYE679BBL1, KEYE760WAL1, KEYE760WWH1, KEYE767WWH0, KEYE770BAL0, KEYE770BAL1, KEYE770BAL2, KEYE770BWH0, KEYE770BWH1, KEYE770BWH2, KEYE777BWH0, KEYE777BWH1, KEYE777BWH2, KEYE778BAL0, KEYE778BAL1, KEYE778BAL2, KEYE77BWH2, KEYE860WAL1, KEYE860WWH1, KEYE870BAL0, KEYE870BAL1, KEYE870BWH0, KEYE870BWH1, KEYL400WAL0, KEYL400WWH0, KEYL405WAL0, KEYL405WWH0, KEYL410BAL0, KEYL410BAL1, KEYL410BAL2, KEYL410BWH0, KEYL410BWH1, KEYL410BWH2, KEYL507WWH0, KEYL510BAL0, KEYL510BAL1, KEYL510BAL2, KEYL510BWH0, KEYL510BWH1, KEYL510BWH2, KEYL517BWH0, KEYL517BWH1, KEYL517BWH2, KEYS677EQ0, KEYS677EQ1, KEYS677EQ2, KEYS677EZ0, KEYS677EZ1, KEYS677EZ2, KEYS700EQ0, KEYS700EQ1, KEYS700EZ0, KEYS700EZ1, KEYS700GQ0, KEYS700GT0, KEYS700GZ0, KEYS700JQ0, KEYS700JQ1, KEYS700JT0, KEYS700JT1, KEYS700LQ0, KEYS700LQ1, KEYS700LT0, KEYS700LT1, KEYS710JQ0, KEYS710JQ1, KEYS710LQ0, KEYS710LQ1, KEYS750GQ0, KEYS750GT0, KEYS750GZ0, KEYS750JQ0, KEYS750JQ1, KEYS750JT0, KEYS750JT1, KEYS750LQ0, KEYS750LQ1, KEYS750LQ2, KEYS750LT0, KEYS750LT1, KEYS750LT2, KEYS777EQ0, KEYS777EQ1, KEYS777EZ0, KEYS777EZ1, KEYS850GQ0, KEYS850GT0, KEYS850GZ0, KEYS850JQ0, KEYS850JQ1, KEYS850JT0, KEYS850JT1, KEYS850LE0, KEYS850LE1, KEYS850LE2, KEYS850LQ0, KEYS850LQ1, KEYS850LQ2, KEYS850LT0, KEYS850LT1, KEYS850LT2, KEYS855JE0, KEYS855JE1, KEYW770BAL0, KEYW770BWH0, KEYW770BWH2, KEYW777BWH0, KEYW777BWH1, KEYW777BWH2, KEYW778BAL0, KEYW778BAL1, KEYW778BAL2, KEYW870BAL0, KEYW870BWH0, KEYW877BWH0, KEYW878BAL0, KGYE660WAL1, KGYE660WWH1, KGYE664WAL1, KGYE664WWH1, KGYE665BAL0, KGYE665BAL1, KGYE665BWH0, KGYE665BWH1, KGYE665BWH3, KGYE670BAL0, KGYE670BAL1, KGYE670BAL2, KGYE670BAL3, KGYE670BWH0, KGYE670BWH1, KGYE670BWH2, KGYE670BWH3, KGYE677BWH0, KGYE677BWH1, KGYE677BWH2, KGYE677BWH3, KGYE678BAL0, KGYE678BAL1, KGYE679BBL0, KGYE679BBL1, KGYE760WAL1, KGYE760WWH1, KGYE767WWH0, KGYE770BAL0, KGYE770BAL1, KGYE770BAL2, KGYE770BWH0, KGYE770BWH1, KGYE770BWH2, KGYE777BAL1, KGYE777BWH0, KGYE777BWH1, KGYE777BWH2, KGYE778BAL0, KGYE778BAL1, KGYE778BAL2, KGYE77BWH1, KGYE860WAL1, KGYE860WWH1, KGYE870BAL0, KGYE870BAL1, KGYE870BWH0, KGYE870BWH1, KGYL400WAL0, KGYL400WWH0, KGYL405WAL0, KGYL405WWH0, KGYL410BAL0, KGYL410BAL1, KGYL410BWH0, KGYL410BWH1, KGYL507WWH0, KGYL510BAL0, KGYL510BAL1, KGYL510BWH0, KGYL510BWH1, KGYL517BWH0, KGYL517BWH1, KGYL517BWH2, KGYS677EQ0, KGYS677EQ1, KGYS677EQ2, KGYS677EZ0, KGYS677EZ1, KGYS677EZ2, KGYS700EQ0, KGYS700EQ1, KGYS700EZ0, KGYS700EZ1, KGYS700GQ0, KGYS700GQ1, KGYS700GT1, KGYS700GZ0, KGYS700GZ1, KGYS700JQ0, KGYS700JQ1, KGYS700JQ2, KGYS700JT0, KGYS700JT1, KGYS700JT2, KGYS700LQ0, KGYS700LQ1, KGYS700LT0, KGYS750GQ0, KGYS750GQ1, KGYS750GT1, KGYS750GZ0, KGYS750GZ1, KGYS750JQ0, KGYS750JQ1, KGYS750JQ2, KGYS750JT0, KGYS750JT1, KGYS750JT2, KGYS750LQ0, KGYS750LQ1, KGYS750LQ2, KGYS750LT0, KGYS750LT1, KGYS750LT2, KGYS777EQ0, KGYS777EQ1, KGYS777EZ0, KGYS777EZ1, KGYS850GQ0, KGYS850GQ1, KGYS850GT0, KGYS850GT1, KGYS850GZ0, KGYS850GZ1, KGYS850JQ0, KGYS850JQ1, KGYS850JQ2, KGYS850JT0, KGYS850JT1, KGYS850JT2, KGYS850LE0, KGYS850LE1, KGYS850LE2, KGYS850LQ0, KGYS850LQ1, KGYS850LQ2, KGYS850LT0, KGYS850LT1, KGYS850LT2, KGYS855JE0, KGYS855JE1, KGYS855JE2, KGYW770BAL0, KGYW770BWH0, KGYW770BWH2, KGYW777BWH0, KGYW777BWH1, KGYW777BWH2, KGYW778BAL0, KGYW778BAL1, KGYW778BAL2, KGYW870BAL0, KGYW870BWH0, KGYW877BWH0, KGYW878BAL0, LCG6646AN2, LDE4000ACL, LDE4000ACW, LDE4000ADL, LDE4000ADW, LDE713, LDE7400ACL, LDE7400ACW, LDE7400ADL, LDE7400ADW, LDE7600AGG, LDE7600AGL, LDE7600AGW, LDE7800ACL, LDE7800ACW, LDE7800ADL, LDE7800ADW, LDE8000ACL, LDE8000ACW, LDE8000ADL, LDE8000ADW, LDE8410ACL, LDE8410ACW, LDE8410ADL, LDE8410ADW, LDE8600ACL, LDE8600ACW, LDE8600ADL, LDE8600ADW, LDE9800ACL, LDE9800ACW

CRITICAL SAFETY WARNING: This repair involves working with electrical components. Always unplug the dryer from the electrical outlet to prevent electrical shock. Never touch electrical components while the dryer is powered. Allow the dryer to cool completely if it was recently used (at least 30 minutes). If uncomfortable with this repair or unfamiliar with dryer electrical systems, hire a qualified appliance technician. IMPORTANT: Before replacing the cycling thermostat, verify the thermostat is actually faulty by testing with a multimeter—also check the thermal fuse and high-limit thermostat, as these safety devices can cause similar symptoms.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, nut driver or socket set (typically 1/4-inch), needle-nose pliers, flashlight, work gloves, multimeter (for testing), masking tape and marker (for labeling wires).IMPORTANT: This repair requires accessing the heater box or blower housing, which may require removing the front panel or rear access panel depending on dryer model.

1. Unplug the dryer from the electrical outlet to ensure complete power disconnection. CRITICAL: Never work on the dryer while it's plugged in.
2. Allow the dryer to cool completely if it was recently used (at least 30 minutes). CRITICAL: Never work on hot dryer components—severe burns can result.
3. Turn off the gas supply if you have a gas dryer (this thermostat is for electric dryers, but some gas dryers use similar thermostats). Important: Always turn off gas when working on gas dryers.
4. Take multiple photos of the dryer configuration, panel locations, and wire routing before disassembly. CRITICAL: Proper reassembly requires exact component positioning.
5. Locate the heater box or blower housing (typically located at the rear of the dryer or beneath the drum, depending on model). Important: The cycling thermostat is mounted on the heater box or blower housing.
6. Remove the rear access panel (if applicable) by removing the screws securing it using a Phillips screwdriver or nut driver (typically 4-6 screws). Caution: Support the panel while removing the last screw.
7. Alternatively, remove the front panel (if applicable) by: removing the lint screen, removing the screws beneath the lint screen opening, lifting the top panel, disconnecting the door switch wires, removing the front panel screws, and carefully removing the front panel. Important: Panel removal varies by dryer model—consult your service manual if needed.
8. Locate the cycling thermostat (typically a small rectangular or round metal component with 4 terminals, mounted on the heater box or blower housing with 1-2 screws).
9. Take detailed close-up photos of: the thermostat wire connections (wire colors and terminal positions), the thermostat mounting screw locations, the thermostat orientation, and any other components nearby.
10. Label each wire before disconnecting by applying masking tape to each wire and marking it with the terminal number or position (Terminal 1, Terminal 2, Terminal 3, Terminal 4). CRITICAL: Incorrect wiring causes dryer malfunction or component damage.
11. Disconnect the wires from the cycling thermostat terminals by pulling the spade connectors straight off or loosening the screw terminals (depending on terminal type). Caution: Do not pull on the wires—grasp the connector and pull straight.
12. Remove the mounting screw(s) securing the cycling thermostat to the heater box or blower housing using a Phillips screwdriver or nut driver (typically 1-2 screws). Caution: Support the thermostat while removing the last screw.
13. Carefully remove the old cycling thermostat from the dryer.
14. Inspect the old cycling thermostat for damage indicators: thermostat doesn't click when heated (bi-metal disc failure, most common), visible burn marks or pitting on electrical contacts (arcing damage), contacts stuck open or closed (contamination or wear), melted or damaged housing (severe overheating), or visible corrosion on terminals (moisture damage). This confirms the diagnosis.
15. If desired, test the old thermostat with a multimeter set to ohms (resistance). At room temperature, the thermostat should show continuity (0-1 ohms) if the contacts are closed, or infinite resistance if the contacts are open. Heat the thermostat with a heat gun—the contacts should open at approximately 155°F. Important: This test is optional but confirms the diagnosis.
16. Inspect the heater box or blower housing for lint buildup or debris. Clean if needed using a soft brush or vacuum. Important: Lint buildup can cause thermostat failure and dryer overheating.
17. Check the thermal fuse and high-limit thermostat (typically located near the cycling thermostat). Test with a multimeter set to ohms—both should show continuity (0-1 ohms). If either shows infinite resistance, it's blown and must be replaced. CRITICAL: A blown thermal fuse or high-limit thermostat indicates the dryer overheated—the cause must be identified and corrected.
18. Unpack the new WP3387134 cycling thermostat from its packaging. CAUTION: The thermostat is a precision component—handle carefully.
19. Verify the new thermostat specifications match the old thermostat: L155-25 (155°F limit, 25°F differential), 4 terminals, 250V rating.
20. Compare the new thermostat to the old one to verify overall dimensions, terminal configuration, mounting hole positions, and orientation match.
21. Inspect the new thermostat for any shipping damage before installation. The housing should be intact, the terminals should be clean and undamaged, and the mounting bracket should be secure.
22. Position the new cycling thermostat on the heater box or blower housing, aligning the mounting hole(s) with the bracket holes. Important: Ensure the thermostat is oriented correctly—the sensing element should face the heated air flow.
23. Install the mounting screw(s) to secure the thermostat. Important: Tighten firmly but do not over-tighten—over-tightening can crack the thermostat housing.
24. Verify the thermostat is securely mounted with no excessive play or movement.
25. Reconnect the wires to the cycling thermostat terminals by pushing the spade connectors onto the terminals or tightening the screw terminals (depending on terminal type). CRITICAL: Connect each wire to the correct terminal using your labels and photos—incorrect wiring causes dryer malfunction.
26. Verify all wire connections are secure by gently tugging on each wire—they should not come off.
27. Verify the wires are routed correctly and not pinched, stressed, or touching hot surfaces.
28. Reinstall the rear access panel or front panel by reversing the disassembly steps: position the panel, install the mounting screws, reconnect any disconnected wires (door switch, etc.), and verify all components are secure.
29. Restore electrical power by plugging in the dryer.
30. Run a test cycle to verify proper cycling thermostat operation:Load the dryer with a few damp towelsSelect a timed dry cycle (30 minutes) on high heatStart the dryerAllow the dryer to run for 10-15 minutesListen for the heating element cycling on and off (you may hear a click when the thermostat opens and closes)Feel the exhaust air—it should be warm but not excessively hotVerify the dryer doesn't overheat or shut off prematurelyAllow the cycle to completeVerify the clothes are drying properly
31. Monitor the dryer temperature during the test cycle. The exhaust air should be warm (approximately 130-155°F) but not excessively hot. Important: If the dryer overheats, stop immediately and verify the thermostat is installed correctly.
32. Listen for the cycling thermostat operation during the test cycle. You may hear a faint click when the thermostat opens and closes as it cycles the heating element. Important: This clicking is normal operation. 33. Verify the dryer doesn't blow the thermal fuse during the test cycle. If the thermal fuse blows, the thermostat may be stuck closed or installed incorrectly.
    34. If the dryer operates normally and maintains proper temperature, the repair is complete.Safety Notes: Always unplug the dryer before working on electrical components. Allow the dryer to cool completely before beginning work (at least 30 minutes). Handle the thermostat carefully—the bi-metal disc is precision-engineered. Label all wires before disconnecting to ensure correct reconnection. Verify all wire connections are secure with no exposed terminals. Do not force wire connectors—they should push on or screw on smoothly. Position wires so they're not pinched or touching hot surfaces. Verify the thermostat is oriented correctly with the sensing element facing the heated air flow. Monitor the first test cycle for proper temperature control. If the dryer overheats or the thermal fuse blows, stop immediately and verify the thermostat installation. This repair typically takes 30-45 minutes depending on dryer model and access. If uncomfortable working with dryer electrical components or unfamiliar with thermostat replacement procedures, hire a professional appliance technician.



1. The cycling thermostat must open at 155°F and close at 130°F (25°F differential)—if the thermostat opens too early or too late, drying performance suffers and clothes may not dry properly. The WP3387134 is calibrated to open at 155°F (68°C) and close at 130°F (55°C), maintaining a 25°F temperature differential. This calibration is critical for proper drying—if the thermostat opens too early (below 155°F), the dryer doesn't get hot enough and clothes dry slowly; if the thermostat opens too late (above 155°F), the dryer overheats and the thermal fuse blows. Never attempt to adjust or recalibrate the thermostat—it's factory-calibrated and cannot be safely adjusted. If the thermostat doesn't maintain proper temperature, it must be replaced.

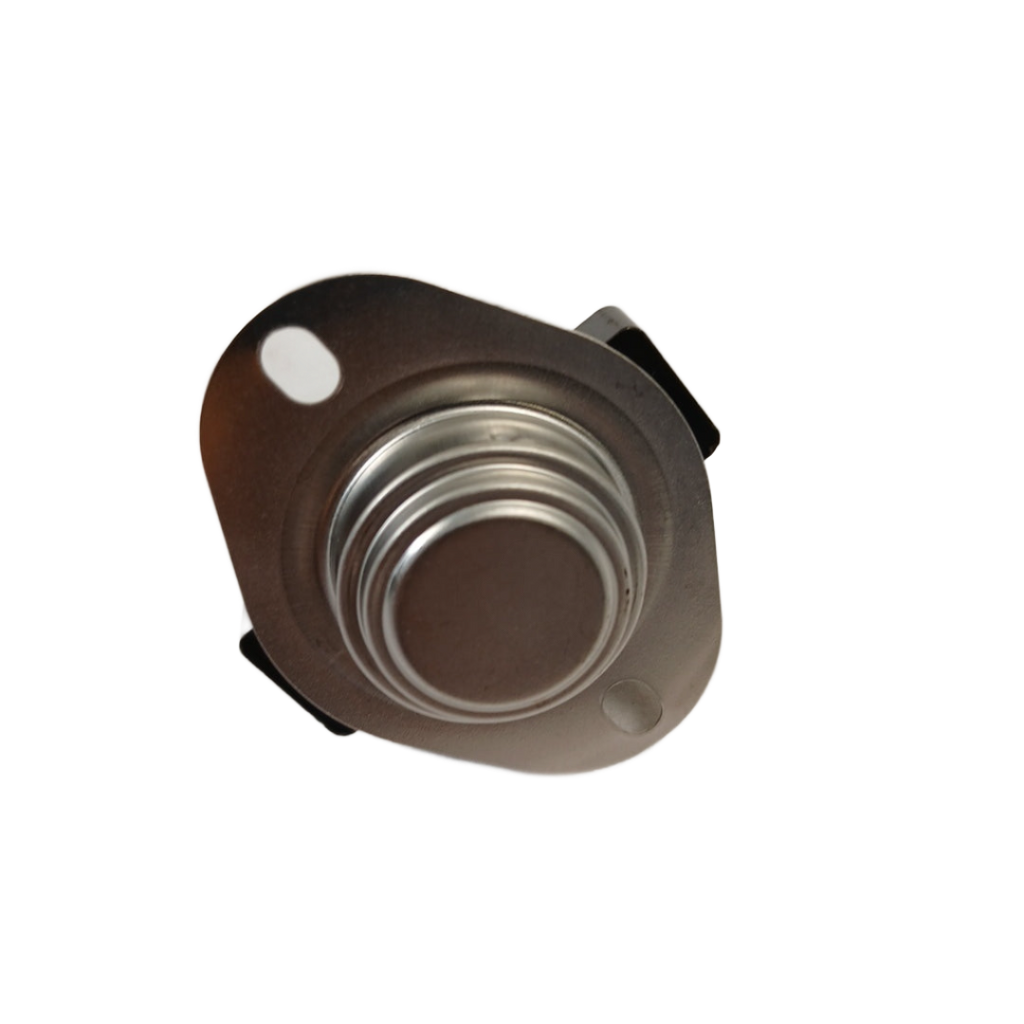

2. The bi-metal disc or coil must be positioned to face the heated air flow for accurate temperature sensing—incorrect positioning causes incorrect temperature readings and poor drying performance. The cycling thermostat senses temperature by measuring the heat of the air flowing past it. If the thermostat is installed backward or at an incorrect angle, the sensing element doesn't receive accurate temperature readings, causing the thermostat to open and close at incorrect temperatures. When installing the new thermostat, verify the orientation by checking against your detailed photos of the old thermostat. The sensing element should face the direction of heated air flow from the heater box.
3. A blown thermal fuse or high-limit thermostat indicates the dryer overheated—the cause must be identified and corrected before installing the new cycling thermostat. The thermal fuse and high-limit thermostat are safety devices that protect the dryer from overheating. If either is blown, it means the dryer reached excessive temperature. This can be caused by: a stuck-closed cycling thermostat (most common cause), a clogged dryer vent restricting air flow, a faulty blower wheel not circulating air properly, or a faulty heating element drawing excessive power. Before installing the new cycling thermostat, identify and correct the cause of overheating. If you simply replace the cycling thermostat without addressing the overheating cause, the thermal fuse will blow again.
4. Wire connections must be made to the correct terminals—incorrect wiring causes the thermostat to cycle at wrong temperatures or not cycle at all. The cycling thermostat has 4 terminals, and the wires must be connected to the correct terminals for proper operation. Incorrect wiring causes the thermostat to malfunction or not operate at all. Always label each wire before disconnecting and verify the correct terminal connections using your photos and the service manual. If you're unsure about the correct wiring, consult the service manual or contact a qualified technician before reconnecting the wires.
5. The thermostat should click when opening and closing during normal operation—if no clicking sound is heard, the thermostat may not be cycling properly. During a drying cycle, you may hear a faint click when the thermostat opens and closes as it cycles the heating element on and off. This clicking sound indicates the thermostat is operating properly. If no clicking sound is heard, the thermostat may be stuck open or closed, or the electrical contacts may be worn and not making proper contact. If no clicking is heard during a test cycle, stop the dryer and verify the thermostat installation and wire connections.
6. The heater box or blower housing should be cleaned of lint and debris before installing the new thermostat—lint buildup can cause thermostat failure and dryer overheating. Lint and debris accumulate in the heater box and blower housing over time, especially if the dryer vent is clogged. This buildup can insulate the thermostat, preventing it from sensing temperature accurately. Lint can also catch fire if it contacts the hot heating element. Before installing the new thermostat, clean the heater box and blower housing thoroughly using a soft brush or vacuum. Remove all lint and debris. A clean heater box ensures proper thermostat operation and safe dryer performance.
7. The thermal fuse and high-limit thermostat should be tested before installing the new cycling thermostat—if either is blown, it must be replaced. The thermal fuse and high-limit thermostat are safety devices located near the cycling thermostat. Test both with a multimeter set to ohms—they should show continuity (0-1 ohms) when functioning properly. If either shows infinite resistance, it's blown and must be replaced. A blown thermal fuse or high-limit thermostat indicates the dryer overheated. Identify and correct the cause of overheating before operating the dryer again.
8. The cycling thermostat has a typical lifespan of 8-12 years with average use, but can be shortened by dryer overheating, lint buildup, or electrical stress. Factors that shorten thermostat lifespan include: dryer overheating from clogged vent or faulty blower (thermal stress), lint buildup insulating the thermostat (thermal stress), electrical surges or voltage fluctuations (electrical stress), repeated thermal cycling from frequent use (mechanical stress), or manufacturing defects. To extend thermostat lifespan, keep the dryer vent clean and unobstructed, clean lint from the heater box regularly, maintain proper electrical connections, and verify the blower wheel operates properly. Regular maintenance and prompt replacement of faulty thermostats ensure reliable dryer operation.
9. If the dryer overheats and blows the thermal fuse repeatedly after thermostat replacement, the cycling thermostat may be stuck closed or installed incorrectly—stop using the dryer immediately. If the thermal fuse blows within a few minutes of starting the dryer, the cycling thermostat is not opening to cool the dryer. This indicates: the thermostat is stuck closed, the thermostat is installed backward or at an incorrect angle, the wires are connected to the wrong terminals, or the new thermostat is faulty. Stop using the dryer immediately and verify the thermostat installation. If the problem persists, the thermostat may be faulty and should be replaced.
10. If the dryer doesn't heat at all after thermostat replacement, the cycling thermostat may be stuck open or the wires may be connected to the wrong terminals—verify the installation. If the dryer doesn't produce any heat after installing the new thermostat, the thermostat may be stuck open (not allowing power to the heating element), or the wires may be connected to the wrong terminals (preventing power from reaching the thermostat). Verify the wire connections using your labels and photos. If the connections are correct but the dryer still doesn't heat, the thermostat may be faulty and should be replaced.
11. The cycling thermostat should be tested with a multimeter before installation to verify it's functioning properly—this confirms the new thermostat is not faulty. Before installing the new cycling thermostat, you can test it with a multimeter set to ohms to verify it's functioning properly. At room temperature, the thermostat should show continuity (0-1 ohms) if the contacts are closed. Heat the thermostat with a heat gun—the contacts should open at approximately 155°F (showing infinite resistance). If the thermostat doesn't respond to heating, it may be faulty and should be replaced before installation.
12. Never attempt to repair a failed cycling thermostat by cleaning, adjusting, or disassembling the thermostat—these repairs are unsafe and will fail immediately. A failed cycling thermostat cannot be safely repaired. Attempting to clean the electrical contacts or adjust the bi-metal disc can damage the thermostat and create safety hazards. Disassembling the thermostat will destroy it. Never attempt any repair of a failed thermostat. Always replace the entire thermostat with a new one. Using a repaired thermostat is a serious safety risk and will result in dryer malfunction or overheating.
