Maytag Dryer Not Tumbling or Drum Won’t Spin? Drive Motor WPW10508324 – Fix No-Tumble Failures Fast

If your Maytag or Whirlpool dryer drum won’t tumble, the dryer runs but clothes stay wet, or you hear humming with no drum movement, the drive motor is the most common cause. In most Maytag MED/MGD and Whirlpool-platform dryers, the drive motor turns the drum belt that rotates the drum — when it fails, the drum sits still, the heating element may still fire, and clothes come out hot but completely wet. ⚡ Common failure point across Maytag MED6000, MED7000, MED9000, MGD6000, MGD7000, MGD9000 and YMED series dryers. Part WPW10508324 is the genuine OEM replacement superseding W10508324, W10281085, W10356941, and W10396038 that restores full drum tumble immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dryer powers on and the control panel responds normally
• ✔ Heating element fires (dryer gets warm or hot)
• ✔ Drive belt is intact and not broken or slipped off the drum
• ✔ Idler pulley and drum glides are confirmed not seized
• ✔ ONLY problem is drum not tumbling, motor humming without rotation, or dryer stopping mid-cycle

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Dryer drum won’t tumble — clothes come out hot but wet — most common complaint
• Dryer starts then stops after a few seconds — motor thermal overload tripping
• Loud humming or buzzing when dryer starts with no drum movement
• Drum turns slowly or intermittently — motor winding partially failed
• Burning smell from the motor area during operation
• Dryer runs normally but drum is completely still

✔ If these symptoms match, the drive motor is the most likely failed component in the system.

✔ In most cases, replacing this drive motor restores full drum tumble immediately.

📦 Part Details

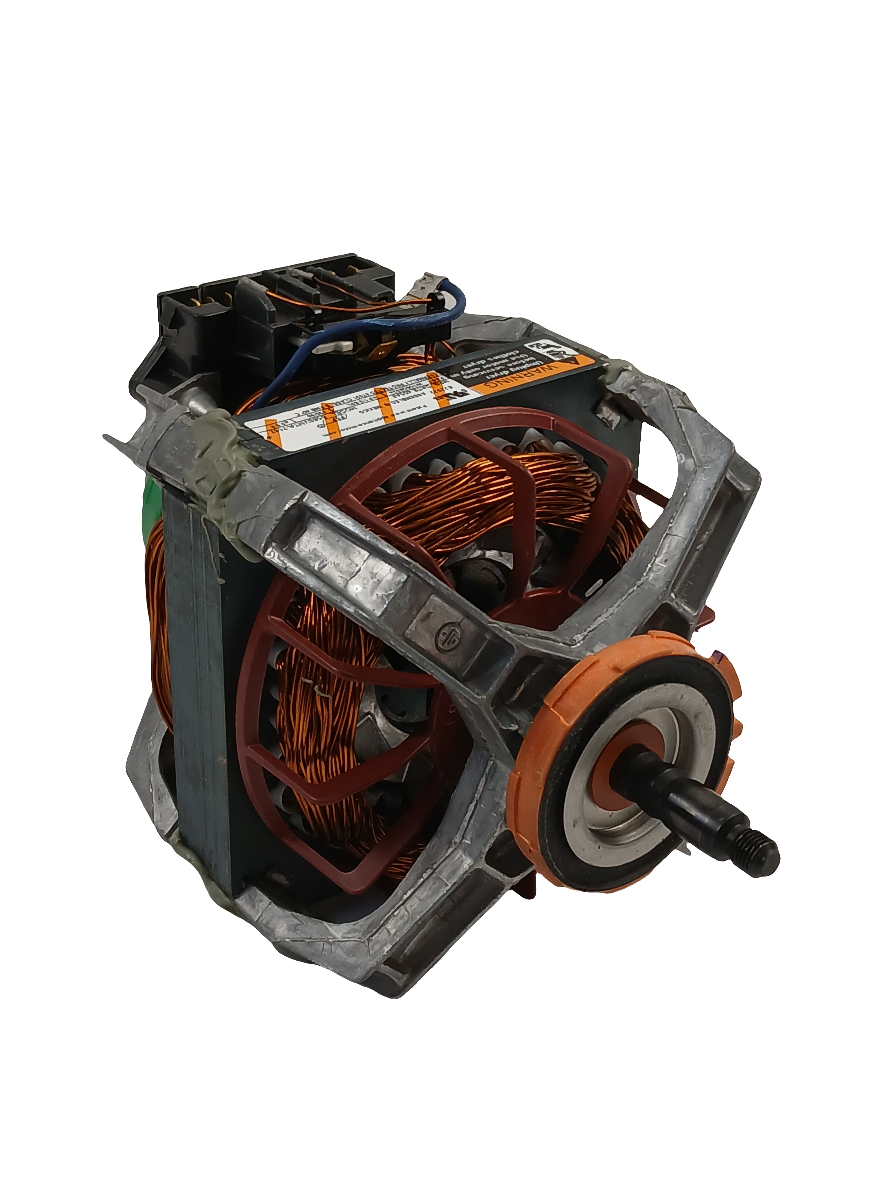

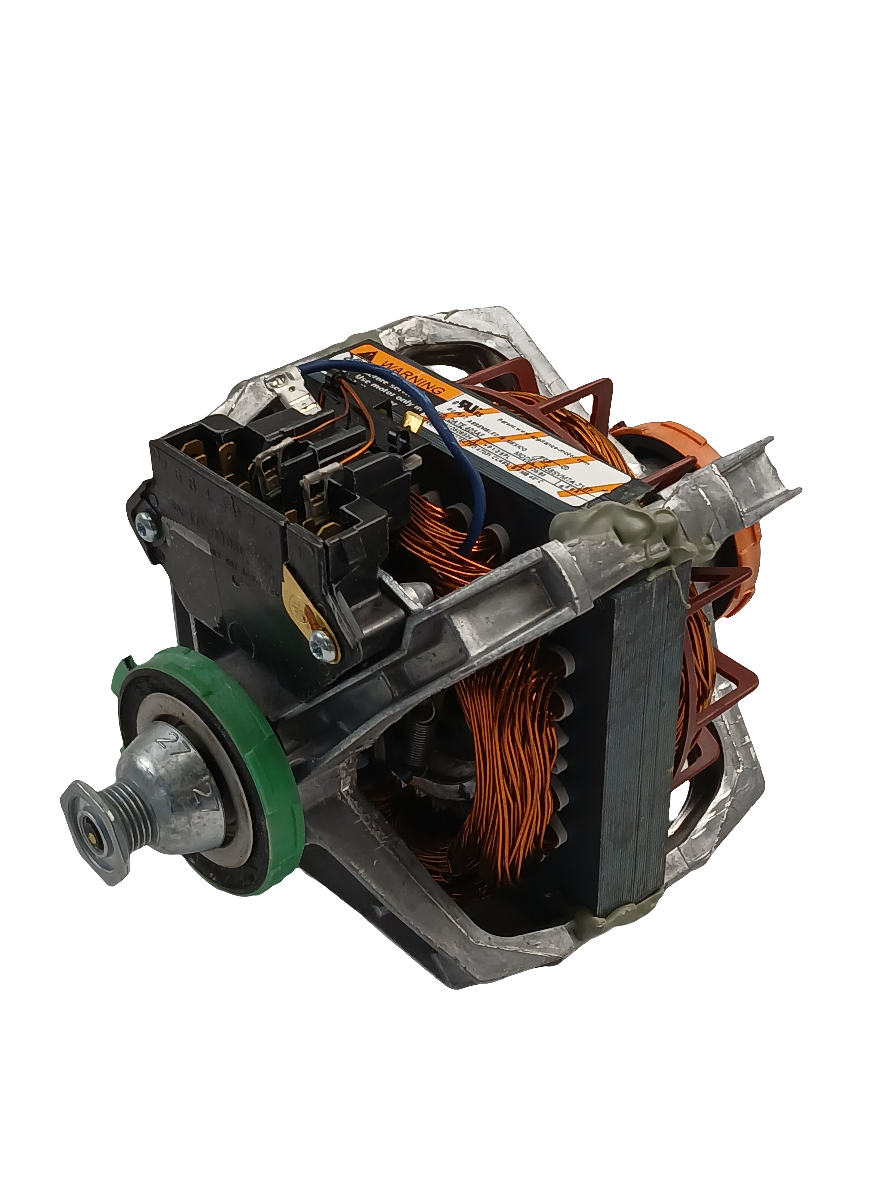

• Part Number: WPW10508324
• Type: Dryer Drive Motor Assembly
• Replaces: OEM direct-fit drive motor — supersedes W10508324, W10281085, W10356941, W10396038 (no modification required)
• Brands: Maytag, Whirlpool
• OEM Option: Genuine Whirlpool/Maytag factory part — guaranteed fit and full OEM lifespan
• Used Option: Tested pull — inspected for function. Ideal for older units where OEM cost isn’t justified.

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before starting. Remove the front panel and lift the drum out to access the motor mounted at the base of the cabinet. Disconnect the wiring harness and blower wheel, unbolt the motor from the base, and transfer the blower wheel to the new motor before reinstalling. Route the drive belt around the drum, motor pulley, and idler pulley — confirm the belt is seated correctly before reassembling. Restore power and run a timed dry cycle to confirm full drum rotation.

💡 Pro Tip

Model hub pages: 7MMEDX550XW0, 7MMEDX550XW1, 7MMGDX550XW0, 7MMGDX550XW1, 7MMGDX600BW0, 7MMGDX700BG0, 7MMGDX700YL0, 7MMGDX700YL1, MED3000BW0, MED4000BW0, MED4200BG0, MED4200BW0, MED6000AG0, MED6000AW0, MED6000XG0, MED6000XG1, MED6000XG2, MED6000XR0, MED6000XR1, MED6000XR2, MED6000XW0, MED6000XW1, MED6000XW2, MED7000AG0, MED7000AW0, MED7000XG0, MED7000XG1, MED7000XG2, MED7000XR0, MED7000XR1, MED7000XW0, MED7000XW1, MED7000XW2, MED8000AG0, MED8000AW0, MED9000YG0, MED9000YG1, MED9000YG2, MED9000YR0, MED9000YR1, MED9000YW0, MED9000YW1, MED9000YW2, MEDB765FC0, MEDB765FW0, MEDP475EW0, MEDX500XL0, MEDX500XW0, MEDX500XW1, MEDX550XW0, MEDX5SPAW0, MEDX5SPAW1, MEDX600XW0, MEDX600XW1, MEDX700AG0, MEDX700AG1, MEDX700XL0, MEDX700XL1, MEDX700XW0, MEDX700XW1, MGD3000BW0, MGD3000BW1, MGD4000BW1, MGD4200BG0, MGD4200BG1, MGD4200BW0, MGD4200BW1, MGD6000AG0, MGD6000AG1, MGD6000AW0, MGD6000AW1, MGD6000XG0, MGD6000XG1, MGD6000XG2, MGD6000XR0, MGD6000XR1, MGD6000XR2, MGD6000XW0, MGD6000XW1, MGD6000XW2, MGD7000AG0, MGD7000AG1, MGD7000AW0, MGD7000AW1, MGD7000XG0, MGD7000XG1, MGD7000XG2, MGD7000XR0, MGD7000XR1, MGD7000XW0, MGD7000XW1, MGD7000XW2, MGD8000AG0, MGD8000AG1, MGD8000AW0, MGD8000AW1, MGD9000YG0, MGD9000YG1, MGD9000YG2, MGD9000YR0, MGD9000YR1, MGD9000YW0, MGD9000YW1, MGD9000YW2, MGDB765FC0, MGDB765FW0, MGDP475EW0, MGDX500XL0, MGDX500XL1, MGDX500XW0, MGDX500XW1, MGDX500XW2, MGDX550XW0, MGDX550XW1, MGDX5SPAW0, MGDX600XL0, MGDX600XL1, MGDX600XW0, MGDX600XW1, MGDX600XW2, MGDX700AG0, MGDX700AG1, MGDX700XL0, MGDX700XL1, MGDX700XL2, MGDX700XW0, MGDX700XW1, MGDX700XW2, YMED3000BG0, YMED3000BW0, YMED4200BG0, YMED4200BW0, YMED6000AG0, YMED6000AW0, YMED6000XG0, YMED6000XG1, YMED6000XG2, YMED6000XG3, YMED6000XR0, YMED6000XR1, YMED6000XR2, YMED6000XR3, YMED6000XW0, YMED6000XW1, YMED6000XW2, YMED6000XW3, YMED7000AG0, YMED7000AW0, YMED7000XG0, YMED7000XG1, YMED7000XG2, YMED7000XG3, YMED7000XR0, YMED7000XR1, YMED7000XR2, YMED7000XW0, YMED7000XW1, YMED7000XW2, YMED7000XW3, YMED8000AG0, YMED8000AW0, YMED9000YG0, YMED9000YG1, YMED9000YG2, YMED9000YG3, YMED9000YR0, YMED9000YR1, YMED9000YW0, YMED9000YW1, YMED9000YW2, YMED9000YW3, YMEDB765FC0, YMEDB765FW0, YMEDP475EW0, YMEDX500XL0, YMEDX500XW0, YMEDX600XW0
