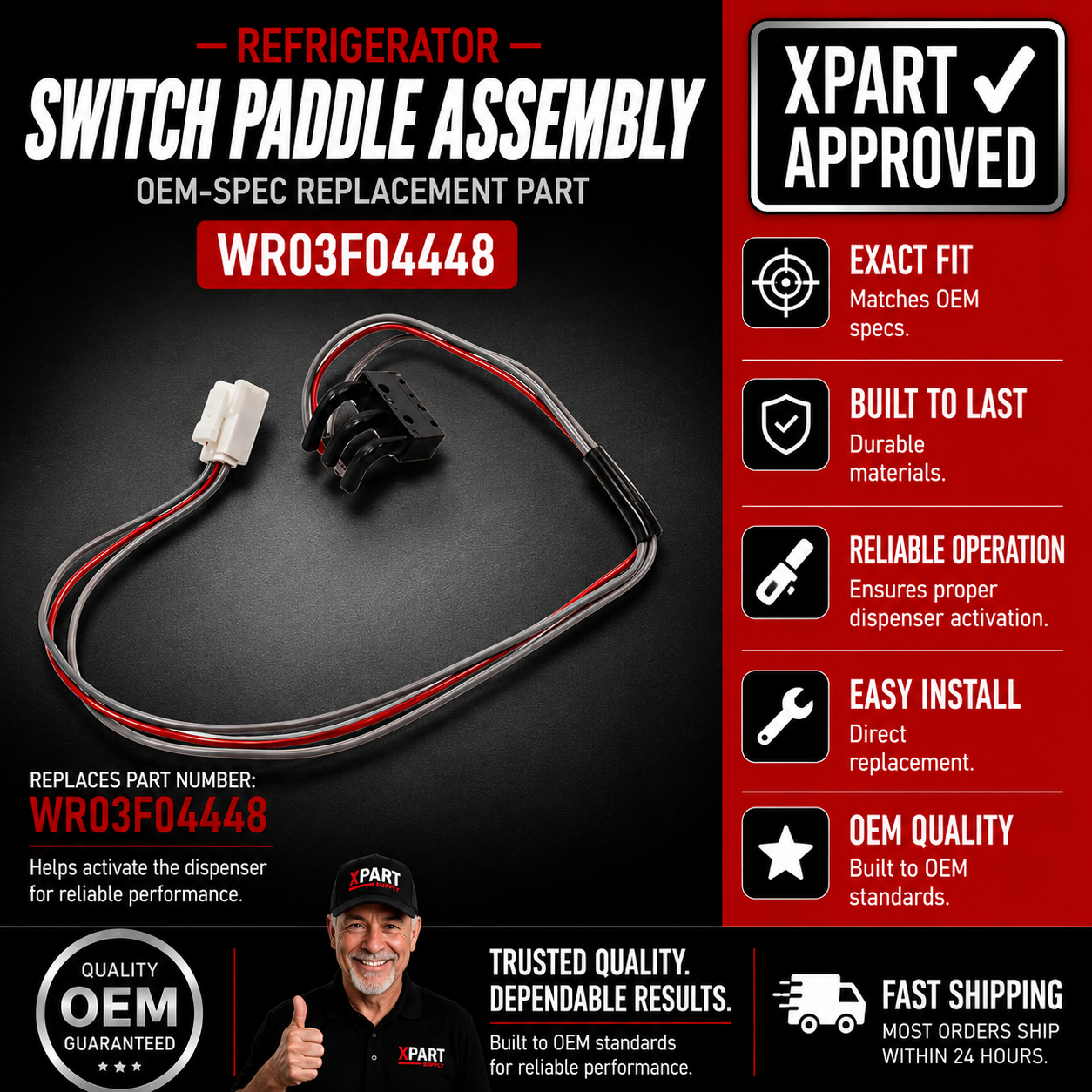

GE Refrigerator Switch Paddle Assembly WR03F04448

Genuine GE refrigerator switch paddle assembly; identified as item 85 in applicable refrigerator parts diagrams.

Is This the Right Part?

Common Symptoms

• Water or ice dispenser is intermittently unresponsive.
• Dispenser paddle is cracked, damaged, sticks, or does not return to its resting position.
• Dispenser activates inconsistently or without normal paddle operation.
• Paddle movement is normal but the dispenser circuit does not receive the expected switch signal.

Check Before Replacing

• Disconnect refrigerator power before accessing the dispenser assembly or wiring.
• Visually inspect the paddle for cracks, distortion, looseness, sticking, or failure to return to position.
• Confirm the paddle moves freely and actuates the switch without excessive force.
• Inspect accessible wiring-harness connectors for looseness or visible damage with power disconnected.
• If qualified and using the model-specific wiring information, test switch continuity with the refrigerator disconnected from power while pressing and releasing the paddle.
• If the paddle switch checks correctly, investigate the dispenser control, wiring, water valve, ice-door mechanism, or water supply rather than assuming this part is defective.

Pro Tip

Part Details

Key Features

• Genuine GE refrigerator dispenser switch-paddle assembly.
• Located in the refrigerator door water-and-ice dispenser system.
• Paddle-switch assembly may be attached to the dispenser trim and replaced as an assembly on applicable models.
• Designed to provide the activation signal when the dispenser paddle is pressed.
• Not a refrigerator door-state switch for the interior light or door-open alarm.

Installation Notes

• Disconnect electrical power before opening the dispenser assembly or disconnecting wiring.
• Access and disassembly vary by refrigerator model; follow the applicable model service information.
• On applicable designs, the dispenser trim and paddle switch are replaced together as an assembly.
• Disconnect and reconnect the wiring harness carefully, and ensure the assembly is fully seated and the paddle returns freely before restoring power.
• Verify operation only after the dispenser assembly and trim are securely reinstalled.

Verified Compatible Models

CFE24SSKBKSS, CFE24SSKFKSS, CFE24SSKGKSS, CFE26KP2NBS1, CFE26KP2NKS1, CFE26KP2NNS1, DFE24JSNAKSS, DFE24JSNNKSS, GFE24JGKFFBB, GFE24JGKFFWW, GFE24JGKNFBB, GFE24JGKNFWW, GFE24JMKFFES, GFE24JMKNFES, GFE26JBMAFTS, GFE26JBMKFTS, GFE26JEMAFDS, GFE26JEMKFDS, GFE26JEMNFDS, GFE26JGMNFBB, GFE26JGMNFWW, GFE26JMMAFES, GFE26JMMKFES, GFE26JMMNFES, GFE26JMMPFES, GFE26JSMAFSS, GFE26JSMKFSS, GFE26JSMNFSS, GFE26JYMNFF, GYE18JBLAFTS, GYE18JBLKFTS, GYE18JEMKFDS, GYE18JMLAFES, GYE18JMLKFES, GYE18JSLAFSS, GYE18JSLKFSS, MFO26JSPAFFS, MFO26JSPAFWW, PFE24HBMAKTS, PFE24HBMLKTS, PFE24HGLAKWW, PFE24HGLGKWW, PFE24HGLJKWW, PFE24HGLLKWW, PFE24HGLNKWW, PFE24HMLAKES, PFE24HMLGKES, PFE24HMLJKES, PFE24HMLLKES, PFE24HMLNKES, PFE24HSLAKSS, PFE24HSLGKSS, PFE24HSLLKSS, PFE24HSLNKSS, PFE24JGKAKBB, PFE24JGKAKWW, PFE24JGKBKWW, PFE24JGKFKWW, PFE24JMKAKES, PFE24JMKBKES, PFE24JMKFKES, PFE24JSKAKSS, PFE24JSKBKSS, PFE24JSKFKSS, PFM25HSLACSS, PFM25HSLJCSS, PFM25JSKACSS, PFM25JSKBCSS, PFM25JSLACSS, PFM25JSLJCSS, PFM25LBMACKB, PFM25LENACDS, PFM25LSKACPS, PFM25LSKACSS, PFM25LSKBCSS, PFM25LSKJCSS, PFM27JSMAFSS, PFM27JSMKFSS, PYE18HBLAKTS, PYE18HBLGKTS, PYE18HBLKKTS, PYE18HEMAKDS, PYE18HMLAKES, PYE18HMLGKES, PYE18HMLKKES, PYE18HMLNKES, PYE18HSLAKSS, PYE18HSLGKSS, PYE18HSLKKSS, PYE18HSLNKSS, PYM18HSLAFSS, PYM18HSLKFSS, XFE26JSMKFSS, CFE24SSKAKSS, PFF25LERACDS, PFF25LERBCDS, PFF27JYRAFFS, PFF27JYRBFFS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
