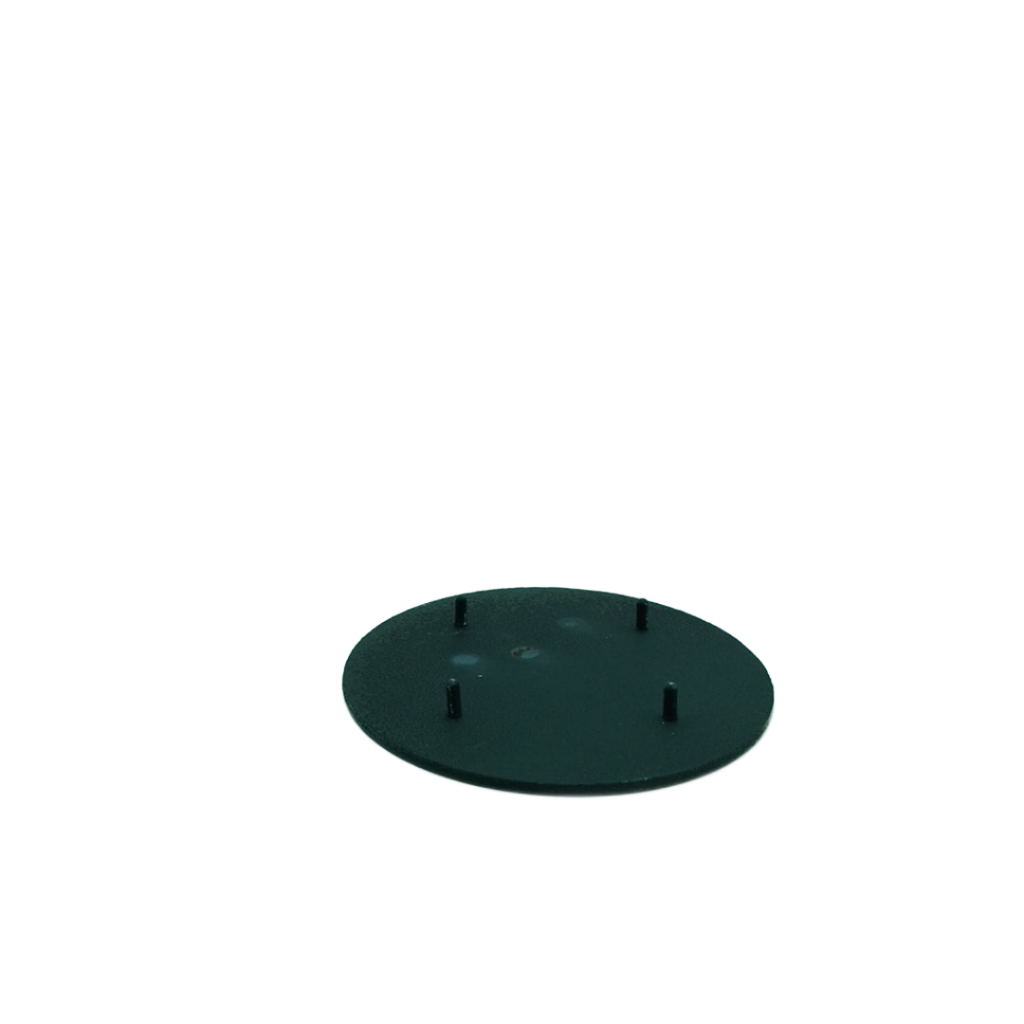

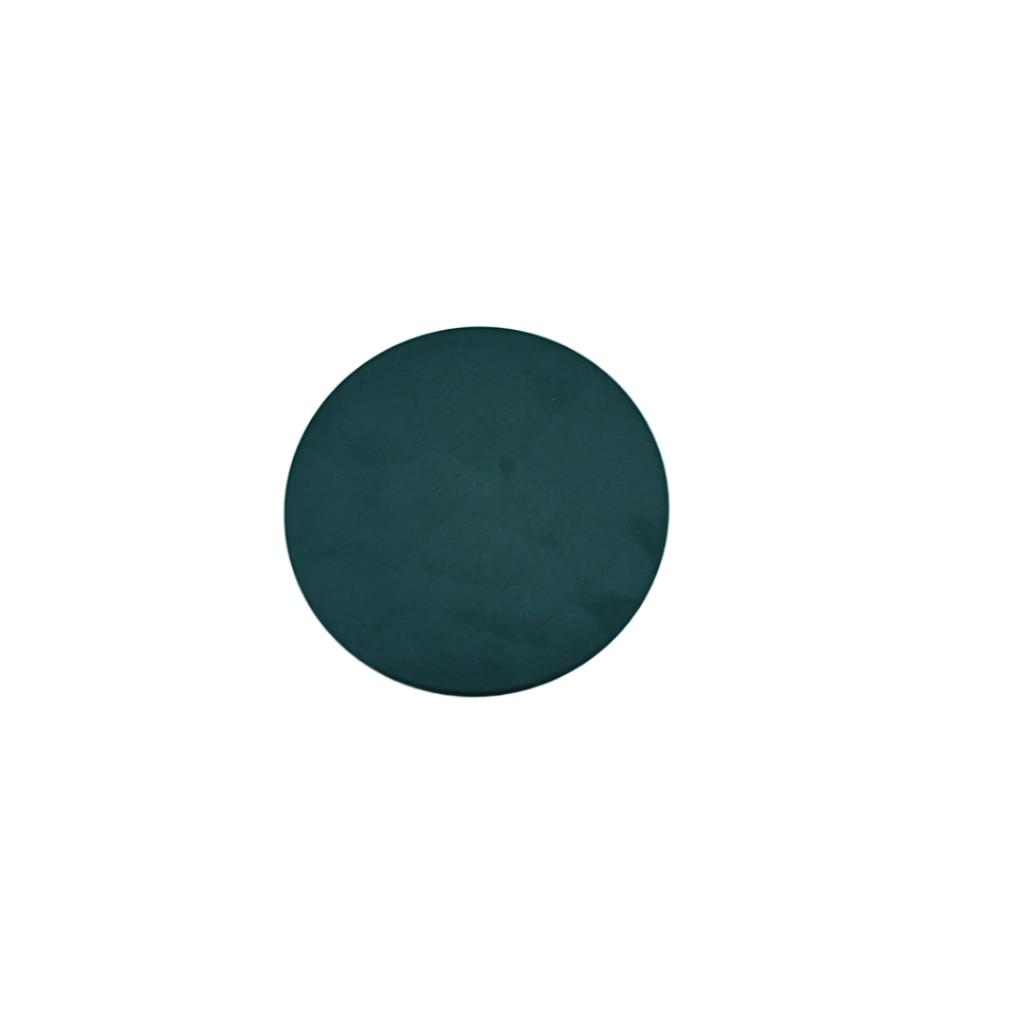

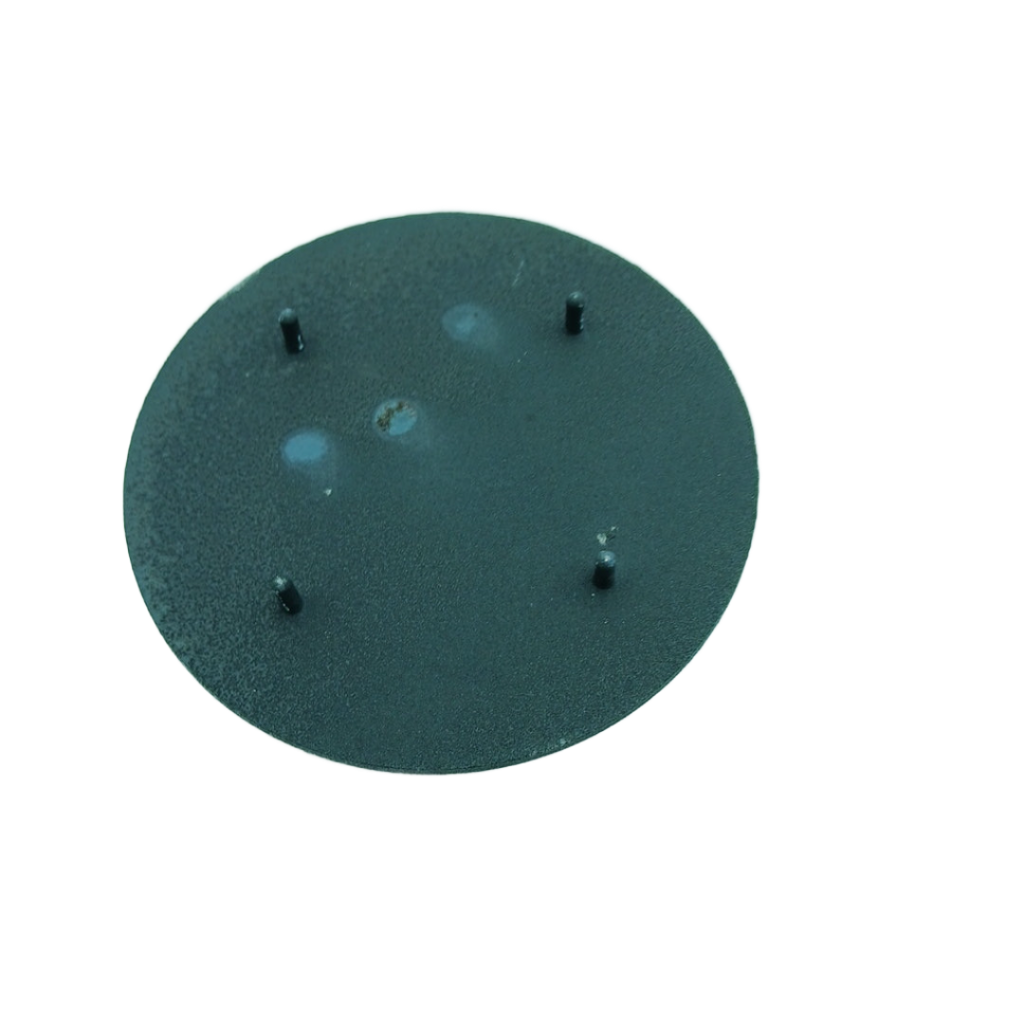

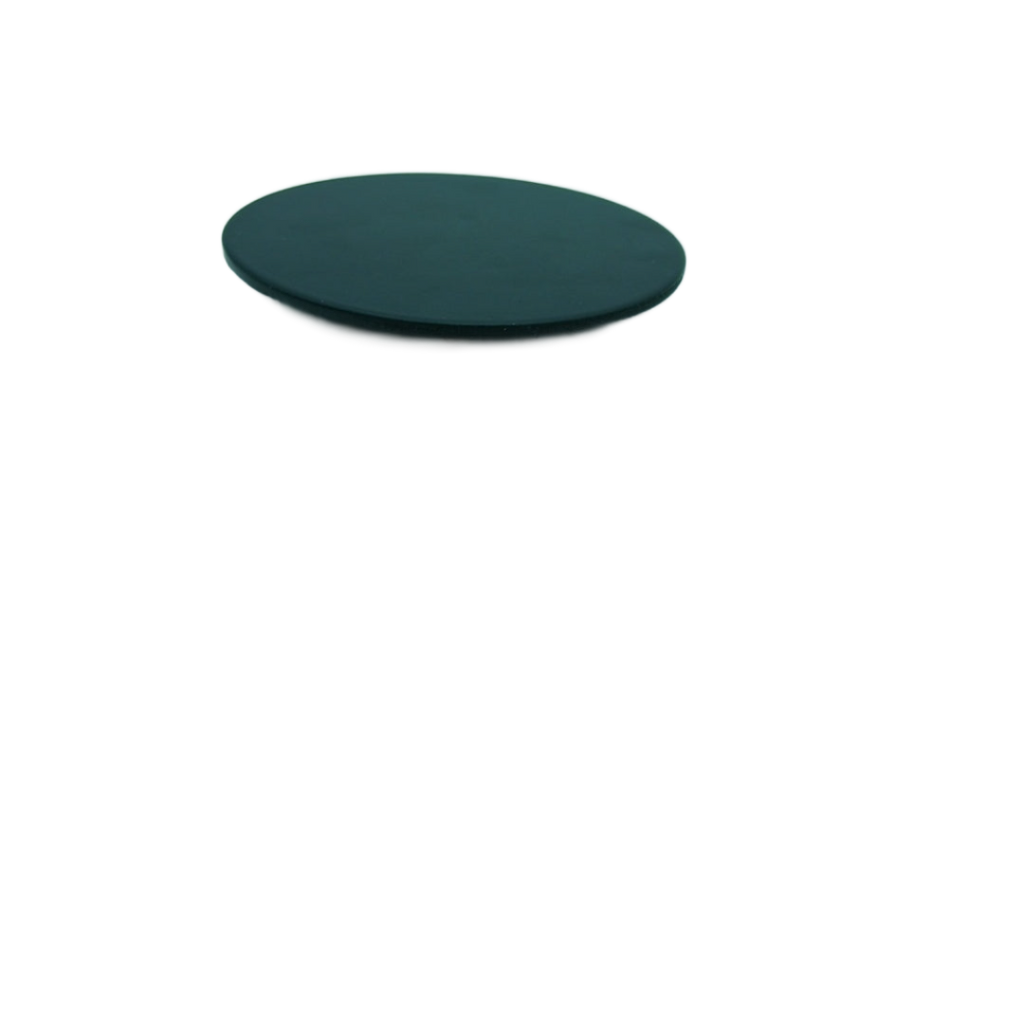

GE (General Electric) Range Surface Burner Cap, Black; 15,000 BTU WS01F02544, Replaces 223C4172G004MA, WB28K10222, WS01F02541

Genuine OEM black surface-burner cap that fits over the burner head, protects it from spills, and helps distribute the flame for even heating. Reliable Parts identifies the cap as a 15,000-BTU component. The supplied front-right position was not independently verified.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven flame pattern or localized hot spots
• Delayed or difficult ignition when the cap is misaligned, wet, or obstructed
• Yellow or abnormal flame associated with a dirty, damaged, or improperly seated burner assembly
• Reduced or uneven heating from the affected burner

Check Before Replacing

• Turn the burner control off and allow all components to cool before inspection.
• Confirm the cap is the correct size and is seated flat and securely on the burner head.
• Inspect the cap and burner-head openings for food debris, grease, moisture, cracks, or deformation.
• Clean removable burner parts with mild detergent and water; dry them thoroughly before reinstalling.
• After reassembly, observe the flame briefly. A properly operating burner should have an even flame; stop use and seek service for persistent yellow, abnormal, or gas-smelling flames.

Pro Tip

Part Details

Key Features

• Genuine OEM GE part
• Black finish
• Rated for a 15,000-BTU surface burner
• Protects the burner head from spills
• Designed to distribute flame for even heating

Installation Notes

• Install only after the burner control is off and the components are cool.
• Place the cap on the matching burner head and verify that it is properly seated and level.
• Do not operate the burner without the cap and other burner parts correctly in place.
• Keep the cap and burner-head openings clean and dry before use.
• Do not touch or remove the cap while another burner is operating.

Verified Compatible Models

CC2S985SET1SS, CC2S985SET2SS, CC2S985SET3SS, CC2S985SET4SS, CC2S985SET5SS, CC2S985SET6SS, CC2S985SET7SS, CCGS985SET1SS, CCGS985SET2SS, CCGS985SET7SS, CCGS985SET8SS, CCGS985SET9SS, CCGS990SET1SS, CCGS990SET3SS, CCGS990SET4SS, C2S900P2M1S1, C2S950P4M1W2, C2S980SEM4SS, C2S986SEL1SS, C2Y366P2T1S1, C2Y366P2T2S1, C2Y366P3T1D1, C2Y366P4T1W2, C2Y366P4T2W2, C2Y486P2T1S1, C2Y486P3T1D1, C2Y486P4T1W2, CC2S900M2N1S5, CC2S900P2M1S1, CC2S900P2M2S1, CC2S900P3M1D1, CC2S900P3M2D1, CC2S900P4M1W2, CC2S950M2N1S5, CC2S950P2M1S1, CC2S950P2M2S1, CC2S950P3M1D1, CC2S950P4M1W2, CC2S985SET8SS, CC2S986SEL1SS, CC2S986SEL2SS, CC2S995SEL1SS, CC2S995SEL2SS, CCGB500P2M1S1, CCGB500P3M1D1, CCGB550P3M1D1, CCGS700M2N1S5, CCGS700P2M1S1, CCGS700P2M2S1, CCGS700P2M3S1, CCGS700P3M1D1, CCGS700P3M2D1, CCGS700P3M3D1, CCGS700P4M1W2, CCGS700P4M2W2, CCGS700P4M3W2, CCGS750M2N1S5, CCGS750P2M1S1, CCGS750P2M2S1, CCGS750P2M3S1, CCGS750P2M5S1, CCGS750P3M1D1, CCGS750P4M1W2, CCGS750P4M2W2, CCGS750P4M3W2, CCGS975SED1SS, CCGS975SED2SS, CCGS975SED3SS, CCGS975SED4SS, CCGS985SET3SS, CCGS985SET4SS, CCGS985SET5SS, CCGS985SET6SS, CCGS985SETASS, CCGS986EEL1DS, CCGS986EEL2DS, CCGS986SEL1SS, CCGS986SEL2SS, CCGS990SET2SS, CCGS990SET5SS, CCGS990SET6SS, CCGS990SET7SS, CCGS990SET8SS, CCGS990SET9SS, CCGS995EEL1DS, CCGS995EEL2DS, CCGS995SEL1SS, CCGS995SEL2SS, CGP9536SL1SS, CGS700P2M2S1, CGS700P3M3D1, CGS700P4M2W2, CGS975SED1SS, CGS975SED3SS, CGS975SED4SS, CGS980SEM2SS, CGS980SEM4SS, CGS980SEM5SS, CGS985SET2SS, CGS985SETASS, CGS990SET3SS, CGS990SET6SS, CGS995SEL1SS, CGU366P2T1S1, CGU366P3T1D1, CGU366P4T1W2, CGU486P2T1S1, CGU486P3T1D1, CGY366P2T1S1, CGY366P2T2S1, CGY366P3T1D1, CGY366P3T2D1, CGY366P4T1W2, CGY366P4T2W2, EC7666DBFPX0A, EG7686SSC0A, EG8005TR5A, EGPD7680I0A, EGPD7680I0B, EGR3000EP1BB, EGR3000EP1WW, EGR3000EP2BB, EGR3000EP2WW, EGR3001EP1SS, EGR3001EP2SS, EGS980SE0A, EGS980SE0B, EGS980SE0C, EGS980SE0D, EGS980SE0E, EM7666DBFPX0A, EM7666DBFPX0B, IO7666DBFPX0A, IO7666DBFPX0B, IO7666DBFPX0C, IO7666DBFPX0D, IO7686FES0A, IO7686FES0B, IO7686FES0C, IO7686FESC0A, IO7686FESC0B, IO7686SS0A, IO7686SS0B, IO7686SS0C, IO7686SSC0A, IO900FIX0A, IO900FIX0B, IO930FIX0A, IO930FIX0B, IO930FIX0C, IO940TS0A, IO950FS0A, IO950FS0B, IO950TS0A, JCGAS640RM1SS, JCGAS640RM2SS, JCGAS640RM3SS, JCGB600DET1BB, JCGB600DET1WW, JCGB600DET2BB, JCGB600SET1SS, JCGB600SET2SS, JCGB650DEF1BB, JCGB650DEF2WW, JCGB650SEF1SS, JCGB650SEF3SS, JCGB660DEJ1BB, JCGB660DEJ1WW, JCGB660DEJ2BB, JCGB660DEJ2WW, JCGB660DEJ3BB, JCGB660DEJ3WW, JCGB660DEJ4BB, JCGB660DEJ4WW, JCGB660DEJ5BB, JCGB660DEJ5WW, JCGB660DP1WW, JCGB660SEJ1SS, JCGB660SEJ2SS, JCGB660SEJ3SS, JCGB660SEJ4SS, JCGB660SEJ5SS, JCGB660SP1SS, JCGB700DEJ1BB, JCGB700DEJ1WW, JCGB700DEJ2BB, JCGB700DEJ2WW, JCGB700DEJ3BB, JCGB700DEJ3WW, JCGB700DEJ4BB, JCGB700DEJ4WW, JCGB700DEJ5WW, JCGB700EEJ1ES, JCGB700EEJ2ES, JCGB700EEJ5ES, JCGB700SEJ1SS, JCGB700SEJ2SS, JCGB700SEJ3SS, JCGB700SEJ5SS, JCGB720EEJ3ES, JCGB720EEJ4ES, JCGB720SEJ1SS, JCGB720SEJ2SS, JCGB720SEJ3SS, JCGB720SEJ5SS, JCGB725SEN1SS, JCGB725SEN2SS, JCGB750DEF1BB, JCGB750DEF1WW, JCGB750DEF2WW, JCGB750DEF3BB, JCGB750EEF1ES, JCGB750SEF1SS, JCGB750SEF3SS, JCGB810DET1BB, JCGB810DET1WW, JCGB810DET2BB, JCGB810SET1SS, JCGB850SEF3SS, JCGB860SEJ1SS, JCGB860SEJ2SS, JCGB860SEJ4SS, JCGB860SEJ5SS, JCGB860SEJ6SS, JCGB860SEJ7SS, JCGBS66SEK1SS, JCGBS66SEK2SS, JCGBS66SEK3SS, JCGBS66SEK4SS, JCGBS66SEK5SS, JCGBS86SP1SS, JCGS650DEF1BB, JCGS650DEF1WW, JCGS650DEF2WW, JCGS650SEF1SS, JCGS650SEF3SS, JCGS650SEF4SS, JCGS750SEF1SS, JCGS750SEF2SS, JCGS750SEF3SS, JCGS750SEF4SS, JCGS750SEF5SS, JCGS760BEL1TS, JCGS760BEL2TS, JCGS760DEL1WW, JCGS760DEL2WW, JCGS760EEL1ES, JCGS760EEL2ES, JCGS760EEL3ES, JCGS760EEL4ES, JCGS760EP1ES, JCGS760EP2ES, JCGS760SEL1SS, JCGS760SEL2SS, JCGS760SEL3SS, JCGS760SEL4SS, JCGS760SP1SS, JCGSS66EEL1ES, JCGSS66SEL1SS, JCGSS86SP1SS, JGAS640RM1SS, JGB281SER5SS, JGB296SET3SS, JGB300SEP2SS, JGB600SET1SS, JGB645SEK2SS, JGB650EEF2ES, JGB650SEF3SS, JGB660EEJ2ES, JGB660SEJ4SS, JGB660SP1SS, JGB700BEJ1TS, JGB700EEJ4ES, JGB700FEJ1DS, JGB700SEJ4SS, JGB720FEJ1DS, JGB720SEJ4SS, JGB800DEP1WW, JGB840SET1SS, JGB850EEF3ES, JGB860SEJ6SS, JGB900SEP1SS, JGB900SEP2SS, JGBP88SEM2SS, JGBS62REK1SS, JGBS64REF1SS, JGBS66DEK3BB, JGBS66DEK3WW, JGBS66EEK3ES, JGBS66REK1SS, JGS650SEF4SS, JGS750SEF1SS, JGSP28DER2BB, JGSP28DER2WW, JGSP28SER2SS, P2S930SEL1SS, P2S930YP1FS, P2S975SER1SS, P2S975SER2SS, P2S975SER3SS, P2S975SER4SS, PC2B930DET1BB, PC2B930DET1WW, PC2B930DET2BB, PC2B930DET2WW, PC2B930DET3BB, PC2B930DET3WW, PC2B930SET1SS, PC2B940SEJ1SS, PC2B940SEJ2SS, PC2B940SEJ3SS, PC2B940SEJ4SS, PC2B940SEJ5SS, PC2B940SEJ6SS, PC2B940SEJ7SS, PC2B940SEJ8SS, PC2S910SEF1SS, PC2S910SEF2SS, PC2S910SEF3SS, PC2S910SEF4SS, PC2S930SEL1SS, PC2S930SEL2SS, PC2S930SEL3SS, PC2S930SEL4SS, PC2S930YP1FS, PCGB910DET1WW, PCGB910SET1SS, PCGB911DEJ1WW, PCGB911DEJ2WW, PCGB911DEJ3WW, PCGB911EEJ1ES, PCGB911EEJ2ES, PCGB911EEJ3ES, PCGB911EEJ4ES, PCGB911EEJ5ES, PCGB911FEJ1DS, PCGB911FEJ2DS, PCGB911SEJ1SS, PCGB911SEJ2SS, PCGB911SEJ3SS, PCGB911SEJ4SS, PCGB911SEJ5SS, PCGB911SEJ6SS, PCGB935BP1TS, PCGB940SEJ1SS, PCGB940SEJ2SS, PCGB940SEJ3SS, PCGB940ZEJ1SS, PCGB940ZEJ2SS, PCGB940ZEJ3SS, PCGB940ZEJ5SS, PCGB960FEJ2DS, PCGB965BP1TS, PCGB965YP1FS, PCGB980ZEJ1SS, PCGB980ZEJ2SS, PCGB980ZEJ3SS, PCGB995SET1SS, PCGB995SET2SS, PCGS910SEF1SS, PCGS910SEF2SS, PCGS910SEF3SS, PCGS910SEF4SS, PCGS930BEL1TS, PCGS930BEL2TS, PCGS930BEL3TS, PCGS930BEL4TS, PCGS930BP1TS, PCGS930EEL1ES, PCGS930FEL1DS, PCGS930FEL2DS, PCGS930FEL3DS, PCGS930SEL1SS, PCGS930SEL2SS, PCGS930SEL3SS, PCGS930SEL4SS, PCGS930YP1FS, PCGS960BEL1TS, PCGS960BEL2TS, PCGS960EEL1ES, PCGS960EEL2ES, PCGS960EEL3ES, PCGS960EEL4ES, PCGS960SEL1SS, PCGS960SEL2SS, PCGS960SEL3SS, PCGS960SEL4SS, PCGS960YP1FS, PGB911ZEJ4SS, PGB915SET1SS, PGB930SEJ5SS, PGP9036SL1SS, PGP953SET2SS, PGP976SET1SS, PGP976SET2SS, PGP976SET5SS, PGS930SEL1SS, PGS930SEL3SS, PGS930YP1FS, PGS960SEL1SS, PGS975SER1SS, PGS975SER2SS, QCGAS740RM1SS, QCGAS740RM2SS, QGAS740RM1SS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
