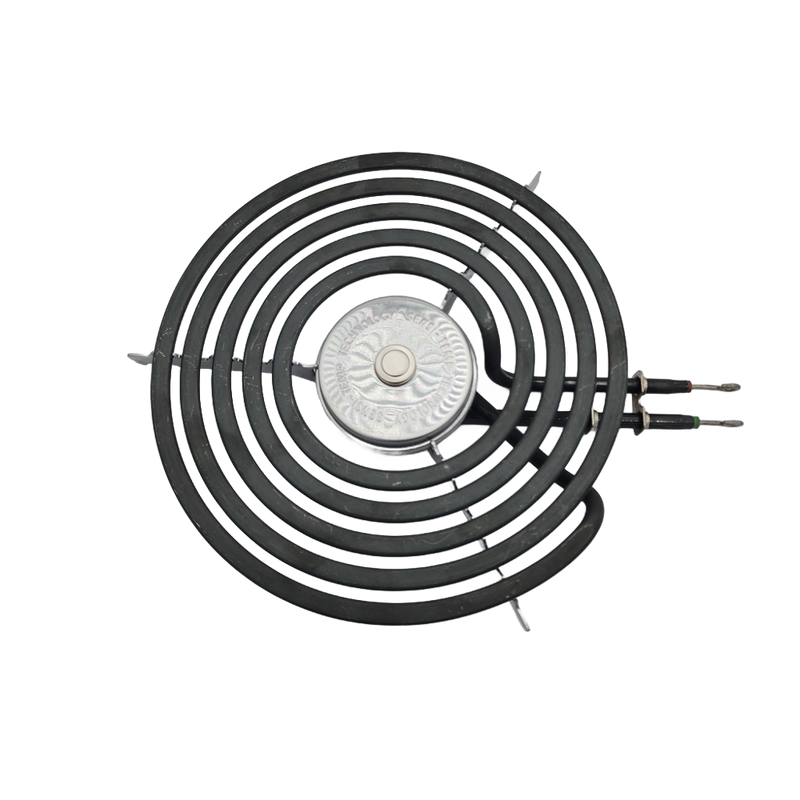

GE ELEMENT COIL ASM T-LTD 6 / Range Sensi-Temp Coil Surface Element, 6-inch WS01F11293, Replaces WS01F09150, Fixes Small surface burner does not heat
Genuine GE OEM 6-inch Sensi-Temp coil surface heating element for electric ranges. The element provides surface cooking heat and incorporates Sensi-Temp temperature-monitoring and shutoff technology.
Genuine GE OEM 6-inch Sensi-Temp coil surface heating element for electric ranges. The element provides surface cooking heat and incorporates Sensi-Temp temperature-monitoring and shutoff technology.
Is This the Right Part?
Common Symptoms
- Small surface burner does not heat.
- Small surface burner heats unevenly.
- The coil does not operate when tested in another same-size working receptacle.
Check Before Replacing
- With the burner control OFF and the element completely cool, confirm the coil and center sensor are clean and dry.
- Check that cookware has a flat bottom and contacts the center Sensi-Temp sensor button.
- Gently press and release the center medallion; the sensor button should move up and down.
- If the issue is not normal Sensi-Temp cycling, test the cooled coil in another working receptacle of the same size. If it works there, the original receptacle should be evaluated for service.
Pro Tip
Part Details
Key Features
- 6-inch plug-in coil surface element.
- Center Sensi-Temp sensor button contacts cookware to monitor pan temperature.
- Sensi-Temp operation may temporarily cycle heat off near 450°F and resume after the pan cools to a safer temperature.
- Designed to seat evenly in the cooktop recess and burner receptacle.
Installation Notes
- Turn the surface-element control OFF and allow the existing element to cool completely before handling.
- Insert the plug-in terminals through the drip-pan opening and into the receptacle.
- Guide the element so it sits evenly in the recessed area before use.
- Do not use the burner until the element is fully and evenly seated.
Verified Compatible Models
DER202WA, DER244BSSCA, DER244WCA, JCAS300DM1WW, JCB530DM1BB, JCB530SM1SS, JCBP240DM1WW, JCBP270DM1WW, JCBS250DM1BB, JCBS250DM1WW, JCBS250SM1SS, JCBS280DM1WW, MCB757DM1WW, MCBS523DM1WW, MCBS525DM1WW
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
