Part number 134503600 replaces 134163400, 5303283471, 878H4, 15072022, 0410637

41749012890, 41749022890, 41759012890, 41759022890, 47-2151-00-01, 47-2151-00-02, 47-2151-23-01, 47-2151-23-02, 47-2251-00-01, 47-2251-00-02, 47-2251-00-04, 47-2251-00-05, 47-2251-23-01, 47-2251-23-02, 47-2251-23-04, 47-2251-23-05, 47-2351-00-01, 47-2351-23-01, 47-2451-00-01, 47-2451-00-03, 47-2451-00-04, 47-2451-23-01, 47-2451-23-03, 47-2451-23-04, 47-2551-00-01, 47-2551-00-03, 47-2551-00-04, 47-2551-23-01, 47-2551-23-03, 47-2551-23-04, 47-2751-00-01, 47-2751-23-01, 47-2828-00-04, 47-2828-23-04, 47-2848-00-04, 47-2848-23-04, 49-2151-00-01, 49-2151-00-02, 49-2151-23-01, 49-2151-23-02, 49-2251-00-01, 49-2251-00-02, 49-2251-00-03, 49-2251-00-04, 49-2251-23-01, 49-2251-23-02, 49-2251-23-03, 49-2251-23-04, 49-2351-00-01, 49-2351-23-01, 49-2451-00-01, 49-2451-00-03, 49-2451-23-01, 49-2451-23-03, 49-2551-00-01, 49-2551-00-03, 49-2551-23-01, 49-2551-23-03, 49-2751-00-01, 49-2751-00-02, 49-2751-23-01, 49-2828-00-04, 49-2828-23-04, 49-2848-00-04, 49-2848-23-04, AEQ6000CES0, AEQ6000CES1, AEQ6000CES2, AEQ6000ES0, AEQ6000ES1, AEQ6000ES2, AEQ6400HE0, AEQ6400HS0, AEQ6500CFG0, AEQ6500CFS0, AEQ6700CFE0, AEQ6700CFS0, AEQ6700FE0, AEQ6700FS0, AEQ7000CEG0, AEQ7000CES0, AEQ7000CES1, AEQ7000CFE0, AEQ7000EE0, AEQ7000EG0, AEQ7000EP0, AEQ7000ES0, AEQ7000ES1, AEQ8000CFE0, AEQ8000CFG0, AEQ8000CFS0, AEQ8000FE0, AEQ8000FG0, AEQ8000FS0, AEQ8700FE0, AEQ8700FG0, AEQ8700FS0, AEQB6000ES0, AEQB6000ES1, AEQB6000ES2, AEQB6400FS0, AEQB7000EG0, AEQB7000EP0, AEQB7000ES0, AEQB7000ES1, AGQ6000CES0, AGQ6000CES1, AGQ6000CES2, AGQ6000ES0, AGQ6000ES1, AGQ6000ES2, AGQ6000ES3, AGQ6000ES4, AGQ6400HE0, AGQ6400HE1, AGQ6400HS0, AGQ6400HS1, AGQ6500CFG0, AGQ6700FE0, AGQ6700FE2, AGQ6700FS0, AGQ6700FS1, AGQ6700FS2, AGQ7000CEG0, AGQ7000CES0, AGQ7000CES1, AGQ7000EE0, AGQ7000EG0, AGQ7000EP0, AGQ7000ES0, AGQ7000ES1, AGQ8000CFE0, AGQ8000CFG0, AGQ8000CFS0, AGQ8000FE0, AGQ8000FE1, AGQ8000FE2, AGQ8000FG0, AGQ8000FG1, AGQ8000FG2, AGQ8000FS0, AGQ8000FS1, AGQ8000FS2, AGQ8700FE0, AGQ8700FE1, AGQ8700FG0, AGQ8700FG1, AGQ8700FS0, AGQ8700FS1, AGQB6000ES0, AGQB6000ES1, AGQB6000ES2, AGQB6400FS0, AGQB6400FS1, AGQB7000EG0, AGQB7000EP0, AGQB7000ES0, AGQB7000ES1, BCEQ2152ES0, BCEQ2152ES1, BCEQ6100FS0, BCEQ6700FS0, BEF332CES0, BEQ1442CES0, BEQ1442CES1, CDE2000FW0, CDE4000FW0, CDE4000FW1, CDE4000HW0, CDE5000FW0, CDEC100FW0, CDEC400FW0, CDEC400FW1, CDEC500FW0, CDG2000FW0, CDG2000FW1, CDG4000FW0, CDG4000FW1, CDG4000HW1, CDG5000FW0, CDG5000FW1, CEF140CES0, CER3600AS0, CER3600AS1, CFRE5711KW0, CFRE5714KW0, CGF140CES0, CGR3600AS0, CGR3600AS1, CGR3600AS2, CGR3600AS3, CREF342AS0, CREF342AS1, CREF342AS2, CRER442AS0, CRER442AS1, CRER442AS2, CRER5700AS0, CRER5700AS1, CRER7900AS0, CRER7900AS1, CRGF342AS0, CRGF342AS1, CRGF342AS2, CRGF342AS3, CRGF342AS4, CRGR442AS0, CRGR442AS1, CRGR442AS2, CRGR5700AS0, CRGR5700AS1, CRGR5700AS2, CRGR5700AS3, CRGR7900AS0, CRGR7900AS1, CRGR7900AS2, CRGR7900AS3, DE150KDD4, DE150KDD5, DE150KDW4, DE150KDW5, DE250KDD4, DE250KDW4, DE271KDW4, DE271KDW5, DE271KDW6, DE271KDW7, DE271KDW8, DE27A5WAFA, DE27A5WAFB, DE27A5WAFC, DE27A5WXFE, DE27A5WXFF, DE27A7WXFD, DE27A7WXFE, DE27A8WAFA, DE27A8WAFB, DE27A8WAFC, DE27S6WVFD, DE27S8WAGA, DE27S8WAGB, DE27S8WAGC, DE27T3WAFA, DE27T3WAFB, DE27T3WAFC, DE27T3WXFD, DE27T3WXFE, DE350RXD1, DE350RXD2, DE350RXD3, DE350RXD4, DE350RXW1, DE350RXW2, DE350RXW3, DE350RXW4, DE3900ADD1, DE3900AWW1, DE400ADD1, DE400ADD2, DE400ADD3, DE400ADW1, DE400ADW2, DE400ADW3, DE400KDD5, DE400KDD6, DE400KDW5, DE400KDW6, DE500ADD5, DE500ADD6, DE500ADD7, DE500ADW5, DE500ADW6, DE500ADW7, DE500KDD5, DE500KDD6, DE500KDH6, DE500KDW5, DE500KDW6, DE5520RW1, DE5520RW2, DE5800ADD1, DE5800AWW1, DE5800RW1, DE5800RW2, DE600ADD2, DE600ADD3, DE600ADW2, DE600ADW3, DE600KDD4, DE600KDD5, DE600KDH4, DE600KDH5, DE600KDW4, DE600KDW5, DE640ADD1, DE640ADD2, DE640ADW1, DE640ADW2, DE640KDD5, DE640KDD6, DE640KDW5, DE640KDW6, DE6420RW1, DE6420RW2, DE6420RW3, DE6500ADD1, DE6500AWW1, DE650ADD1, DE650ADD2, DE650ADD3, DE650ADW1, DE650ADW2, DE650ADW3, DE650KDD4, DE650KDD5, DE650KDD6, DE650KDW4, DE650KDW5, DE650KDW6, DE6520AL1, DE6520AW1, DE6900RW1, DE6900RW2, DE7400PW1, DE7400PW2, DE800ADD1, DE800ADD2, DE800ADD3, DE800ADD4, DE800ADW1, DE800ADW2, DE800ADW3, DE800ADW4, DE800KDD4, DE800KDD5, DE800KDD6, DE800KDH4, DE800KDH5, DE800KDH6, DE800KDW4, DE800KDW5, DE800KDW6, DE8600PW1, DE8600PW2, DE8800PW1, DE8800PW2, DEA500G3D, DEA500G3W, DEA500G4D, DEA500G4W, DEA500KD1, DEA500KD2, DEA500KD3, DEA500KW1, DEA500KW2, DEA500KW3, DEA501G3D, DEA501G3W, DEA501G4D, DEA501G4W, DEA501KD1, DEA501KD2, DEA501KD3, DEA501KW1, DEA501KW2, DEA501KW3, DECIFL3, DECIFL4, DECIFW3, DECIFW4, DECSFL3, DECSFL4, DECSFW3, DECSFW4, DEDFL3, DEDFL4, DEDFW3, DEDFW4, DEDMFL3, DEDMFL4, DEDMFW3, DEDMFW4, DEFW3, DEFW4, DEGCIFL3, DEILL3, DEILL4, DEILL5, DEILW3, DEILW4, DEILW5, DEISFL3, DEISFL4, DEISFL5, DEISFW3, DEISFW4, DEISFW5, DESFL3, DESFL4, DESFW3, DESFW4, DET100KD1, DET100KD2, DET100KW1, DET100KW2, DET250K1D, DET250K1W, DET400G3D, DET400G3W, DET400G4D, DET400G4W, DET400KD1, DET400KD2, DET400KD3, DET400KW1, DET400KW2, DET400KW3, DG250KXD4, DG250KXW4, DG27A5WAFA, DG27A5WAFB, DG27A5WXFE, DG27A5WXFF, DG27A7WXFD, DG27A7WXFE, DG27A8WAFA, DG27A8WAFB, DG27S8WAGA, DG27S8WAGB, DG27T3WAFA, DG27T3WAFB, DG27T3WXFD, DG27T3WXFE, DG350RXD1, DG350RXD2, DG350RXD3, DG350RXW1, DG350RXW2, DG350RXW3, DG3900ADD1, DG3900AWW1, DG400AXD1, DG400AXD2, DG400AXW1, DG400AXW2, DG400KXD5, DG400KXD6, DG400KXW5, DG400KXW6, DG400SXD1, DG400SXW1, DG400TXD0, DG400TXD1, DG400TXW0, DG400TXW1, DG500AXD5, DG500AXD6, DG500AXW5, DG500AXW6, DG500KXD5, DG500KXD6, DG500KXW5, DG500KXW6, DG5520RW1, DG5520RW2, DG5800ADD1, DG5800AWW1, DG5800RW1, DG5800RW2, DG600AXD1, DG600AXD2, DG600AXW1, DG600AXW2, DG600KXD4, DG600KXD5, DG600KXH5, DG600KXW4, DG600KXW5, DG640AXD1, DG640AXD2, DG640AXW1, DG640AXW2, DG640KXD5, DG640KXD6, DG640KXW5, DG640KXW6, DG6420RW1, DG6420RW2, DG6420RW3, DG6500ADD1, DG6500AWW1, DG650AXD1, DG650AXD2, DG650AXW1, DG650AXW2, DG650KXD4, DG650KXD5, DG650KXD6, DG650KXW4, DG650KXW5, DG650KXW6, DG6520AL1, DG6520AW1, DG6900RW1, DG6900RW2, DG7400PW1, DG7400PW2, DG800AXD1, DG800AXD3, DG800AXW1, DG800AXW2, DG800AXW3, DG800KXD4, DG800KXD5, DG800KXD6, DG800KXW4, DG800KXW5, DG800KXW6, DG8600PW1, DG8600PW2, DG8800PW1, DG8800PW2, DGA500G3D, DGA500G3W, DGA500G4D, DGA500G4W, DGA500KD1, DGA500KD2, DGA500KW1, DGA500KW2, DGA501G3D, DGA501G3W, DGA501G4D, DGA501G4W, DGA501KD1, DGA501KD2, DGA501KW1, DGA501KW2, DGCIFL4, DGCIFW3, DGCIFW4, DGCSFL3, DGCSFL4, DGCSFW3, DGCSFW4, DGDFH4, DGDFL3, DGDFL4, DGDFW3, DGDFW4, DGDMFH4, DGDMFL3, DGDMFL4, DGDMFW3, DGDMFW4, DGFW3, DGFW4, DGILL3, DGILL4, DGILL5, DGILW3, DGILW4, DGILW5, DGISFL3, DGISFL4, DGISFL5, DGISFW3, DGISFW4, DGISFW5, DGSFL3, DGSFL4, DGSFW3, DGSFW4, DGT400G3D, DGT400G3W, DGT400G4D, DGT400G4W, DGT400KD1, DGT400KD2, DGT400KW1, DGT400KW2, EDE16NS0, EDG16NS0, EKDR14XAKW0, F31C336CS0, F31C336CS1, F31C336CT0, F31C336CT1, F31C336ES0, F31C436ES0, F31C546CS0, F31C546CS1, F31C546CT0, F31C546CT1, F32C336CS0, F32C336CS1, F32C336CT0, F32C336CT1, F32C336ES0, F32C436ES0, F32C546CS0, F32C546CS1, F32C546CT0, F32C546CT1, FCED2000LS0, FCED3000ES0, FCGD2000LS0, FCGD3000ES0, FCGD3000ES1, FD955EAW0, FDE116RBW0, FDE116RBW1, FDE216RBS0, FDE216RBS1, FDE216RBS2, FDE216RBT0, FDE216RES0, FDE216RES1, FDE216RES2, FDE336CFS2, FDE336LBS0, FDE336LBS1, FDE336LBS2, FDE336LES0, FDE336NBS0, FDE336NBS1, FDE336NBS2, FDE336NES0, FDE336RBS0, FDE336RBS1, FDE336RBS2, FDE336RBT0, FDE336RBT1, FDE336RBT2, FDE336RES0, FDE336RES1, FDE336RES2, FDE336RET0, FDE336RET1, FDE336RET2, FDE436RBS0, FDE436RBS1, FDE436RBS2, FDE436RBT0, FDE436RBT1, FDE436RBT2, FDE436RES0, FDE436RES1, FDE436RES2, FDE436RET0, FDE436RET1, FDE436RET2, FDE437GHS0, FDE546DBD1, FDE546DBL0, FDE546DBW0, FDE546DBW1, FDE546LBS0, FDE546LBS1, FDE546LBS2, FDE546LES0, FDE546NBS0, FDE546NBS1, FDE546NBS2, FDE546NBT0, FDE546NBT1, FDE546NBT2, FDE546NES0, FDE546RBS0, FDE546RBS1, FDE546RBS2, FDE546RBT1, FDE546RBT2, FDE546RES0, FDE546RES1, FDE546RES2, FDE546RET0, FDE546RET1, FDE546RET2, FDE558GGS0, FDE558GHS0, FDE646GES0, FDE646RHS0, FDE647RFS0, FDE647RFS1, FDE648GFS0, FDE648GFS1, FDE648GFT0, FDE648GFT1, FDE648GHS0, FDE648GHT0, FDE700FHS0, FDE7970EW0, FDE7970EW1, FDE7970EW2, FDE7971EW0, FDE7971EW1, FDE7971EW2, FDE7974HW0, FDE7976FS0, FDE7976FS1, FDE7976FW0, FDE7976FW1, FDE848GFS0, FDE848GFT0, FDE855RHS0, FDE875GHS0, FDE875GHT0, FDEB23RGS0, FDEB23RGS1, FDEB23RGS2, FDEB34RGS0, FDEB34RGS1, FDEB34RGS2, FDEB55RGS0, FDEB55RGS1, FDER436RHS0, FDES69RHW0, FDES69RHW1, FDG116RBW0, FDG216RBS0, FDG216RBS1, FDG216RBS2, FDG216RES0, FDG336LBS0, FDG336LBS1, FDG336LBS2, FDG336LES0, FDG336MRES0, FDG336NBS0, FDG336NBS1, FDG336NBS2, FDG336NES0, FDG336RBS0, FDG336RBS1, FDG336RBS2, FDG336RBT0, FDG336RBT1, FDG336RBT2, FDG336RES0, FDG336RES1, FDG336RES2, FDG336RET0, FDG336RET1, FDG336RET2, FDG436RBS1, FDG436RBS2, FDG436RBT1, FDG436RBT2, FDG436RES0, FDG436RES1, FDG436RES2, FDG436RET0, FDG436RET1, FDG437GHS0, FDG546DBD0, FDG546DBD1, FDG546DBW0, FDG546DBW1, FDG546LBS0, FDG546LBS1, FDG546LBS2, FDG546LBT0, FDG546LBT1, FDG546LES0, FDG546NBS0, FDG546NBS1, FDG546NBS2, FDG546NBT0, FDG546NBT1, FDG546NBT2, FDG546NES0, FDG546RBS0, FDG546RBS1, FDG546RBS2, FDG546RBT0, FDG546RBT1, FDG546RBT2, FDG546RES0, FDG546RES1, FDG546RES2, FDG546RES3, FDG546RET0, FDG546RET1, FDG546RET2, FDG546RET3, FDG558GGS0, FDG558GHS0, FDG646GES0, FDG646RHS0, FDG647RFS0, FDG647RFS1, FDG648GFS0, FDG648GFS1, FDG648GFT0, FDG648GFT1, FDG648GHS0, FDG648GHT0, FDG700FHS0, FDG848GFS0, FDG848GFT0, FDG855RHS0, FDG875GHS0, FDG875GHT0, FDG8970EW0, FDG8970EW1, FDG8970EW2, FDG8971EW0, FDG8971EW1, FDG8971EW2, FDG8971EW3, FDG8974HW0, FDG8976FS0, FDG8976FS1, FDG8976FW0, FDGB23RGS0, FDGB23RGS1, FDGB23RGS2, FDGB34RGS0, FDGB34RGS1, FDGB34RGS2, FDGB55RGS0, FDGB55RGS1, FDGR436RHS0, FDGS69RHW0, FDGS69RHW1, FEFB9100ES0, FEFB9200ES0, FEQ1442CES0, FEQ1442CES1, FEQ1442ES0, FEQ1442ES1, FEQ1442FE0, FEQ1452CKS0, FEQ1452HE0, FEQ1452HS0, FEQ332CES0, FEQ332ES0, FEQ5000HS0, FEQB2152FE0, FEQB2152FE1, FEQB4000FS0, FEQB4000FS1, FEQBB30DS0, FER111AS0, FER111AS1, FER111AS2, FER211AS0, FER211AS1, FER211AS2, FER221AS0, FER231AS0, FER231AS1, FER231AS2, FER311CFS0, FER311FS0, FER331AS0, FER331AS1, FER331KAS1, FER341AC0, FER341AS0, FER341AS1, FER641CFS0, FER641FS0, FER6600ES0, FER6600FS0, FERB5700DS0, FERB6600ES0, FERB6600FS0, FERB7800DS0, FGFB9100ES0, FGFB9200ES0, FGQ1442ES0, FGQ1442ES1, FGQ1442ES2, FGQ1442ES3, FGQ1442FE0, FGQ1442FE2, FGQ1452HE0, FGQ1452HE1, FGQ1452HS0, FGQ1452HS1, FGQ332ES0, FGQ332ES1, FGQ332ES2, FGQ5000HS0, FGQB2152FE0, FGQB2152FE1, FGQB4000FS0, FGQB4000FS1, FGQB4000FS2, FGQBB30DS0, FGR211AS0, FGR211AS1, FGR211AS2, FGR211AS3, FGR211AS4, FGR211MAS0, FGR221AS0, FGR231AS0, FGR231AS1, FGR231AS2, FGR231AS3, FGR231AS4, FGR231CAS4, FGR311FS0, FGR311FS1, FGR311FS2, FGR331AS0, FGR331AS1, FGR331KAS1, FGR341AC0, FGR341AC1, FGR341AS0, FGR341AS1, FGR641FS0, FGR641FS1, FGR641FS2, FGR6600ES0, FGR6600FS0, FGRB5700DS0, FGRB6600ES0, FGRB6600FS0, FGRB7800DS0, FRE5711KW0, FRE5714KW0, FRG5711KW0, FRG5714KW0, FSE346RHS0, FSE446RHS0, FSE446RHS1, FSE446RHS2, FSE447GHS0, FSE447GHS1, FSE748GFS0, FSE748GFS1, FSE848RHQ0, FSE848RHS0, FSE849GHQ1, FSE849GHS1, FSEB39RGS0, FSG346RHS0, FSG446RHS0, FSG446RHS1, FSG446RHS2, FSG446RHS3, FSG446RHS4, FSG447GHS0, FSG447GHS1, FSG748GFS0, FSG748GFS1, FSG848RHQ0, FSG848RHS0, FSG849GHQ1, FSG849GHS1, FSGB39RGS0, GCEQ2152ES0, GCEQ2152ES1, GCER1042FC0, GCER1042FS0, GCGQ2152ES0, GCGQ2152ES1, GCGR1042FS0, GDE216REW0, GDE216REW1, GDE216RHS0, GDE336RBD1, GDE336RBD2, GDE336RBS0, GDE336RBS1, GDE336RBW0, GDE336RBW1, GDE336RBW2, GDE336RES1, GDE336RES2, GDE336RHS0, GDE337REW0, GDE337REW1, GDE346RES0, GDE436RBD1, GDE436RBD2, GDE436RBW0, GDE436RBW1, GDE436RBW2, GDE436REW0, GDE436REW1, GDE546RBD1, GDE546RBD2, GDE546RBS0, GDE546RBS1, GDE546RBS2, GDE546RBW0, GDE546RBW1, GDE546RBW2, GDE546RES0, GDE546RES1, GDE546RFS0, GDE546RFS1, GDE546RHS0, GDE648RHS0

⚙️ Installation Overview

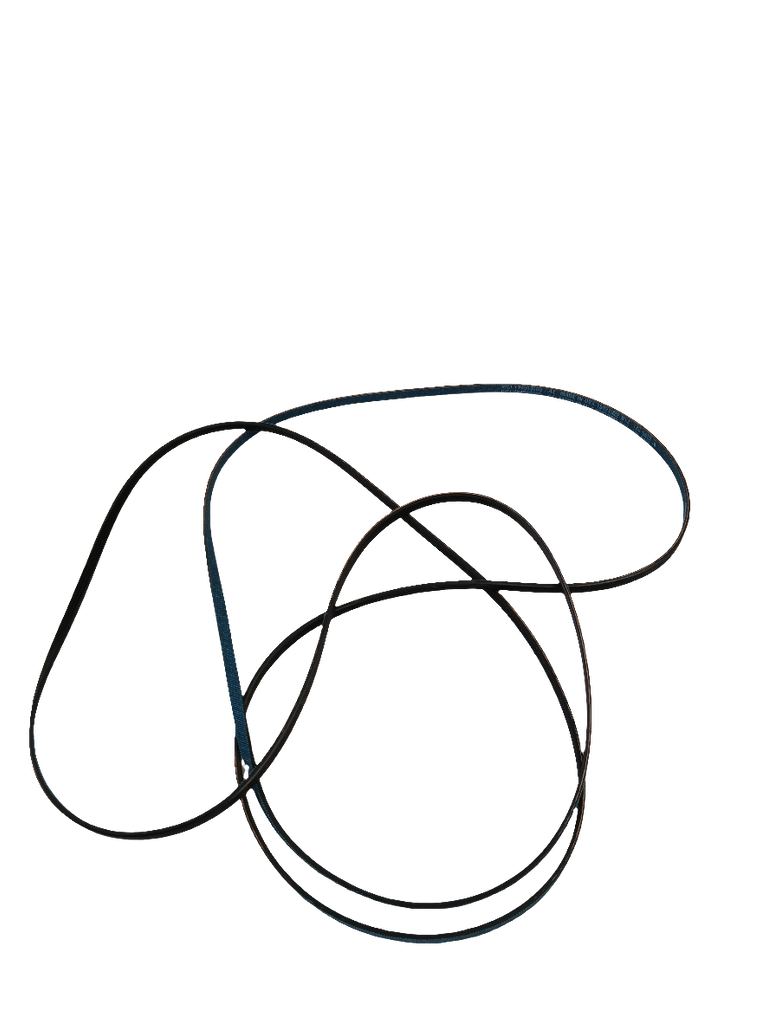

The 134503600 drum belt wraps around the dryer drum, tension pulley, and motor pulley to rotate the drum during a drying cycle. Replacing it restores proper drum movement when the old belt snaps, slips, or wears out.

🧰 Tools You’ll Need

•
  1/4" nut driver or screwdriver

•
  Putty knife or flat-head screwdriver

•
  Needle-nose pliers (optional)

•
  Work gloves

•
  Vacuum or brush (for cleaning lint buildup)


🪛 Step-by-Step Installation Guide

1. Safety First

•
  Unplug the dryer from the power outlet.

•
  If it’s a gas dryer, also turn off the gas supply.

•
  Pull the dryer slightly away from the wall for better access.


2. Access the Drum Area

•
  Remove the lint screen and the two screws underneath it.

•
  Use a putty knife to release the top clips and lift the top panel.

•
  Disconnect the door switch wiring harness if necessary.

•
  Remove the front panel screws (usually two at the top and two at the bottom).


3. Remove the Old Belt

•
  Carefully pull the drum forward.

•
  The old belt should be looped around the drum, motor pulley, and idler (tension) pulley.

•
  Take note of how it’s routed before removing it — a quick photo helps.

•
  Slide the old belt off and remove any debris or lint.


4. Install the New Belt (134503600)

•

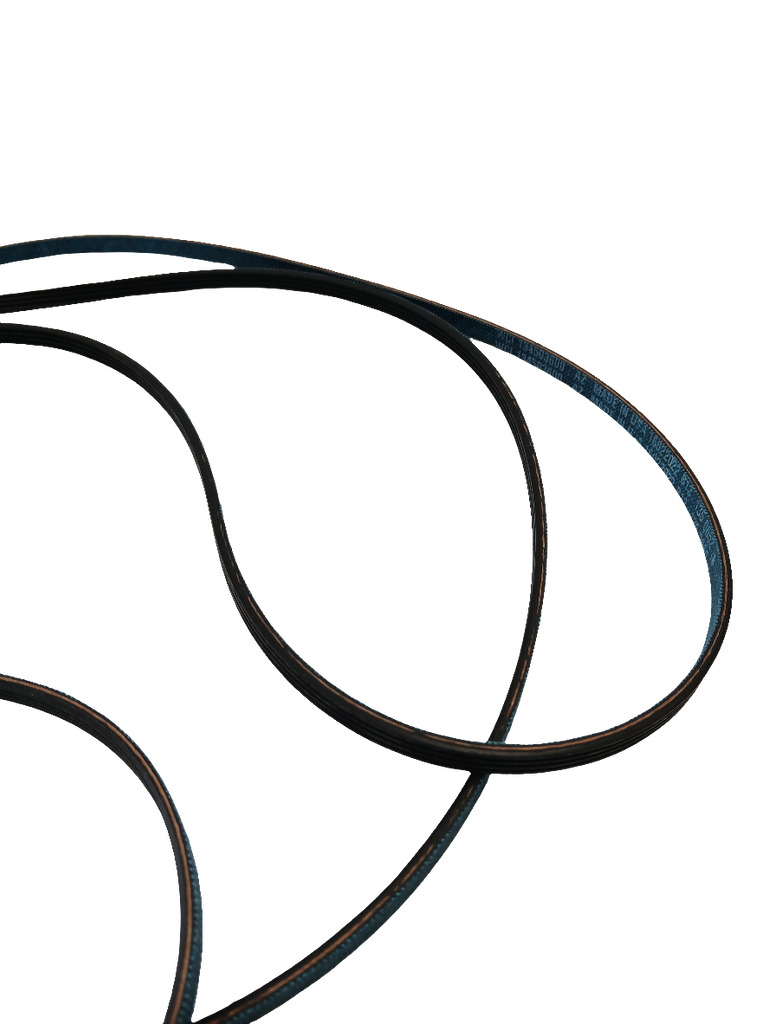

  Wrap the new belt around the drum with the grooved side facing the drum.

•
  Align the belt along the wear marks from the previous one (usually mid-drum).

•
  Feed the belt through the idler pulley and around the motor pulley following a “snake” pattern (the idler pulley adds tension).

•
  Ensure the belt sits flat with no twists.


5. Reassemble the Dryer

•
  Reinstall the front panel and reconnect the door switch.

•
  Lower the top panel and secure all screws.

•
  Reinsert the lint screen.


6. Test the Dryer

•
  Plug the dryer back in (and turn the gas back on if applicable).

•
  Run a short cycle to verify smooth drum rotation and quiet operation.

•
  If you hear squeaking or thumping, double-check the belt alignment.


💡 Pro Tips

•
  Clean lint buildup inside the cabinet while you have it open — it improves performance and safety.

•

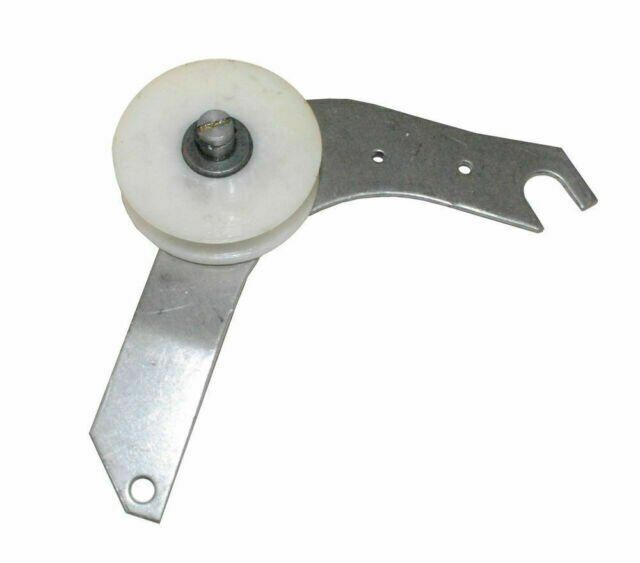

  If your dryer was squeaking before the belt broke, consider inspecting the idler pulley and drum rollers for wear.

•
  Always use the OEM belt (134503600) or a verified equivalent to ensure proper tension and longevity.
