THE SELECTED 6-INCH SURFACE ELEMENT DOES NOT HEAT
Whirlpool Range Radiant surface element with limiter, 6 inch, 1200 watts W10823711, Fixes The selected 6-inch surface element does not heat

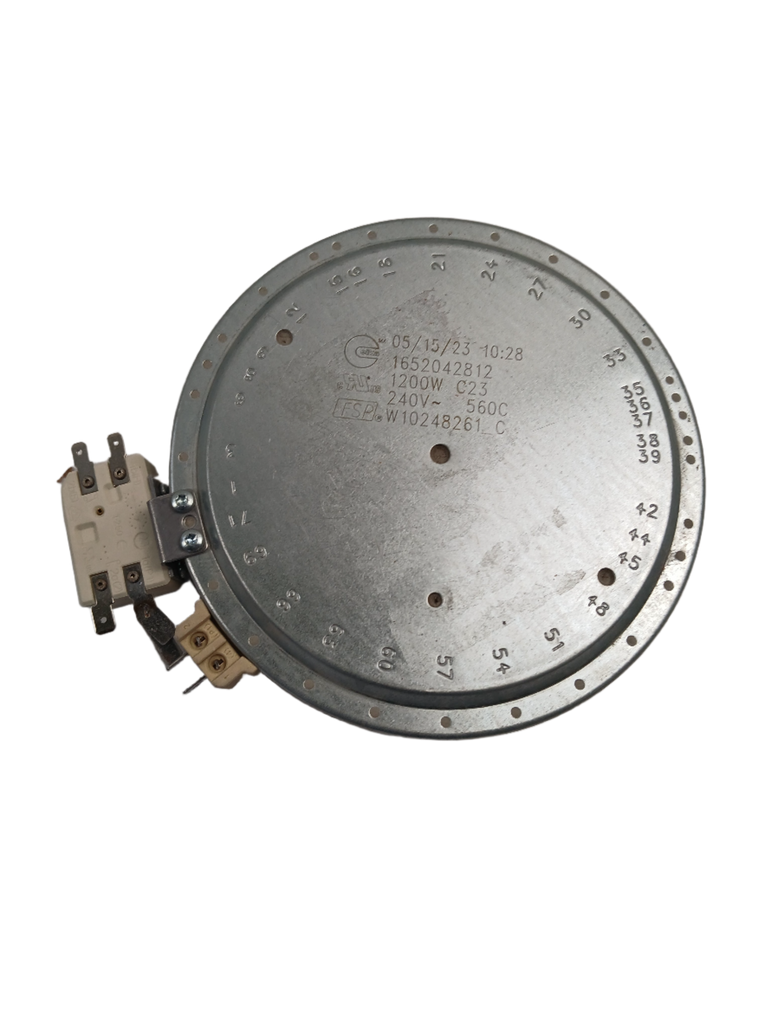

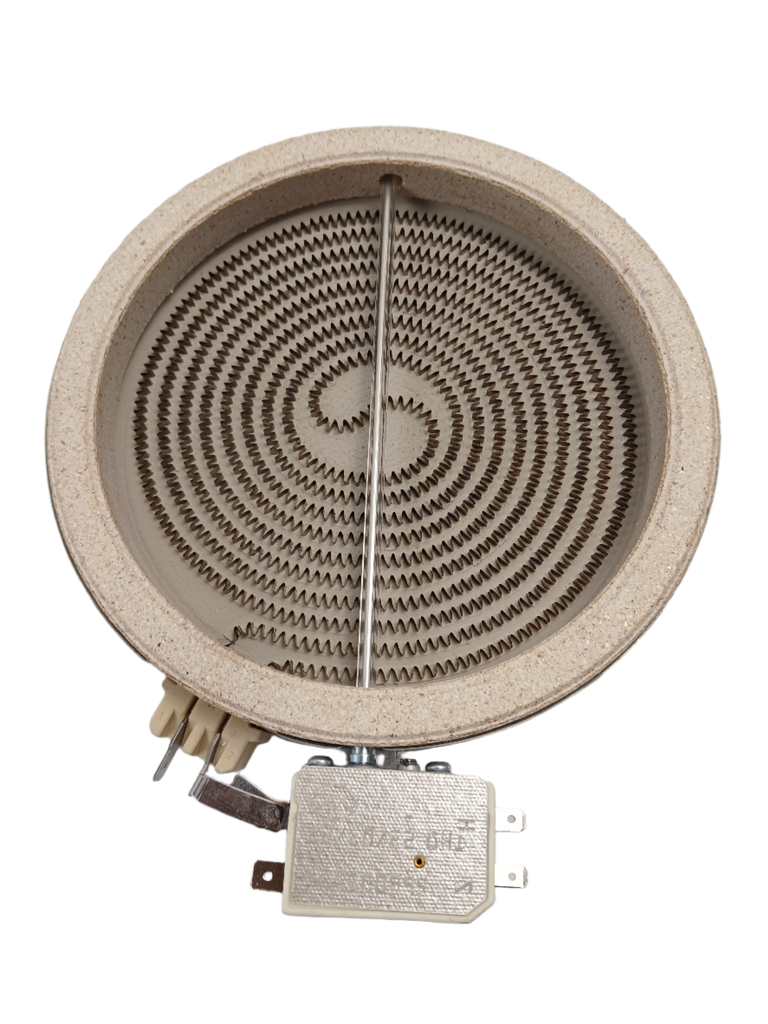

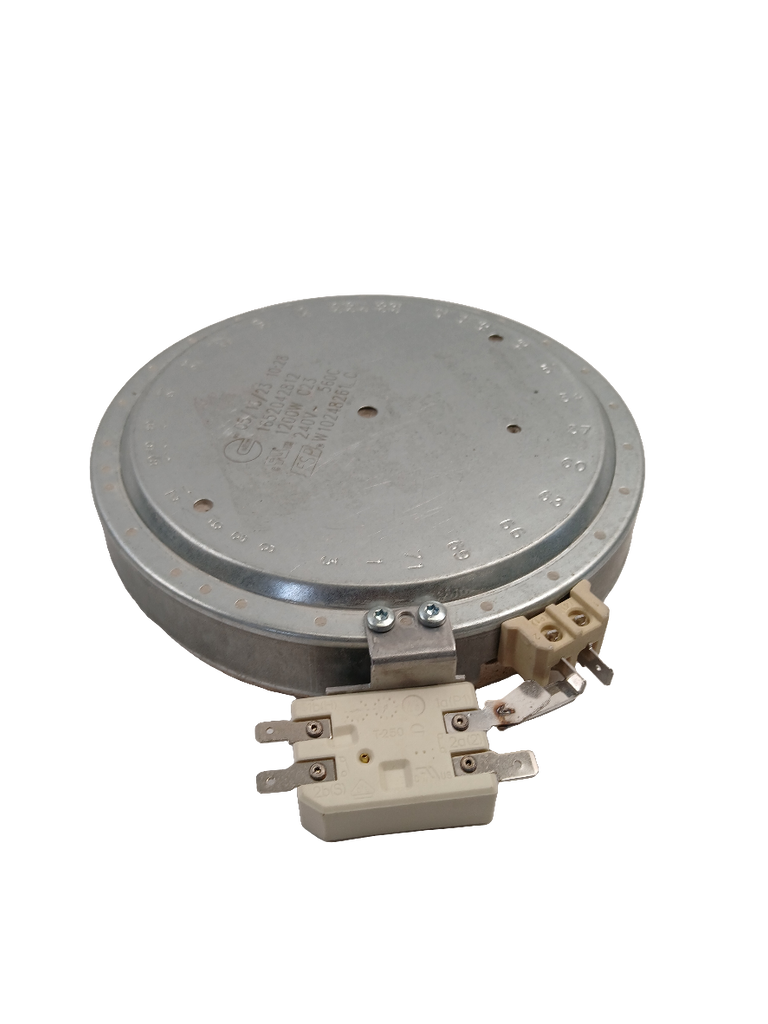

Genuine Whirlpool OEM 6-inch, 1200-watt radiant surface element with limiter for electric ranges and cooktops. The element supplies heat to the cooking surface.
Part W10823711Replaces 12002141, 12002146, 4381790, 74007122, 74008568, 74008573, 7406P365-60, 7406P375-60, 8053621, 8272567, 8523698, WP8523698Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberW10823711
Replaces12002141, 12002146, 4381790, 74007122, 74008568, 74008573, 7406P365-60, 7406P375-60, 8053621, 8272567, 8523698, WP8523698
ManufacturerWhirlpool
Appliance TypeRange
Part TypeRadiant surface element with limiter, 6 inch, 1200 watts
✅ Cross Reference Information
Current Part NumberW10823711
Replaces12002141, 12002146, 4381790, 74007122, 74008568, 74008573, 7406P365-60, 7406P375-60, 7406P36560, 7406P37560, 8053621, 8272567, 8523698, WP8523698
Common Symptoms
- Selected surface element will not heat.
- Range or cooktop will not start.
Check Before Replacing
- Confirm the correct surface-element control is selected and check whether the affected zone produces heat while other zones operate normally.
- Check that the household circuit breaker/fuse and range or cooktop power supply are operational.
- Do not treat cycling or intermittent red glow alone as a failure: the limiter normally cycles a radiant element, including on HI. Remove cookware, allow the cooktop to cool for 30 minutes, and retest if it does not cycle back on.
- Before any internal inspection or electrical testing, switch off power at the circuit breaker and let the cooktop cool fully. Inspect accessible element/limiter terminals and wiring for obvious heat damage or loose connections; use continuity testing only with power disconnected and according to the model's service information.
Pro Tip
A limiter-equipped radiant element may cycle on and off even at the HI setting, and portions of the cooking area may not glow continuously; this behavior is normal and helps protect the ceramic cooktop.
Part Details
Part NumberW10823711
Part TypeRadiant surface element with limiter, 6 inch, 1200 watts
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionHeats the 6-inch radiant surface-cooking zone; its limiter cycles the element to help protect the ceramic cooktop from overheating.
Installation Notes
- Disconnect power at the circuit breaker and allow the glass cooktop/element to cool completely before service.
- Follow the wiring diagram and instructions supplied for the exact appliance model and replacement part; limiter terminal arrangements can differ from an older assembly.
- Before disconnecting wires, document their terminal locations so they can be restored exactly as specified. Do not rely only on the physical position of wires on the old limiter.
- After installation, restore power and verify operation. Normal limiter cycling is expected.
Verified Compatible Models
AER5735QAF, AER5735QAQ, AER5845QAN, GFE471LVB0, GY399LXUB04, JES9900BCB, JES9900BCS, JES9900BCW, MER5755QAS, MER5765QAB, MER5875QAF, YGY397LXUQ0, YGY397LXUS0
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
